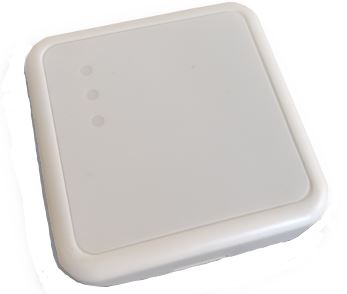

Trax20242-Wirepas MESH WiFi Gateway
Trax20242 Wirepas WiFi Gateway is an innovative-platform, low-power and low-cost gateway, with WiFi connectivity, compatible with Wirepas Mesh 2.4GHz networks (sink node). WiFi Wirepas is based on ESP32 S3 embedded SoC, which includes WiFi 802.11 b/g/n support. Wirepas sink is based on nRF52832 SoC. WiFi Wirepas is provided in a compact light-weight plastic enclosure suitable for wall or ceiling installation. Dual power-supply is supported: 5VDC USB (through lateral USB-C connector) or 4.5-30VDC (through internal 2-port connector, with rear knockout on back panel for cable entry).
Description
Features :
- Low-power Wirepas gateway with WiFi connectivity with full support of Wirepas gateway drivers for MQTT connection
- Supported Wirepas stack: 5.x (up to 5.3)
- Operating modes: Wirepas Sink device
- Network interface: Wireless LAN Compatible with Wirepas Network Tool (WNT) backend or with custom back-end, cloud or on-premises
- Fully compliant with Wirepas remote MQTT APIs
- Web UI manager dashboard and HTTP APIs for configuration and management
| Item | Aspect |
| Hardware Platform | Espressif Systems ESP32S3WROOM-1 |
| Processor | ESP32-S3 series, Xtensa® dual-core 32-bit LX7 microprocessor, up to 240MHz |
| Memory | 384 KB ROM, 512 KB SRAM, Up to 8 MB PSRAM |
| Connectivity | WiFi (802.11), Wirepas Mesh 2.4GHz (v5.x) |
| User interfaces | Power-on LED, Wirepas LED, WiFi RGB LED, factory-reset button |
| WiFi Core module | Espressif Systems ESP32-S3 |
| Protocol | IEEE 802.11 b/g/n |
| Frequency band | 2.412 to 2.484 GHz |
| Channel spacing | 20 MHz (802.11 b/g/n), 40MHz (802.11n) |
| Sensitivity | -98 dBm (802.11b, 1 Mbps) |
| TX Power | 20.5dBm (max., 802.11b, 1 Mbps) |
| Antenna type | Meander Planar Inverted F-antenna |
| Antenna gain | 0dBi |
| Wirepas Core module | Nordic Semiconductor nRF52832 SoC, 32-bit ARM Cortex-M4 |
| Protocol | Wirepas Mesh 2.4GHz, v5.x (up to 5.3) |
| Frequency band | 2.402 to 2.480 GHz |
| Channel spacing | 2 MHz |
| Sensitivity | -96 dBm |
| TX power | 4dBm (max.) |
| Antenna type | Planar Inverted F-antenna |
| Antenna gain | 2dBi |
| Power voltage | 5 Vdc (USB), 4.5 to 30 Vdc (internal 2-port) |
| Power connector | USB: USB-C connector, Internal 2-port: pluggable connector, |
| Würth series 301/3157 compatible. Rear knockout for cable entry (20mm diameter) | |
| Current | 300 mA @5Vdc (max., with 802.11b, 1 Mbps, @20.5 dBm) |
| Material | Recyclable ABS plastic (flame-resistant UL94V-0) |
| Color | White |
| Size | 74 x 74 x 25.5 mm |
| Weight | 50 g |
| Protection | IP40 |
| Assembly | Front and back clip together construction (tool required for disassembly once mounted) |
| Mounting options | Dual-adhesive or screws |
| Operating temperature | -40°C to +65°C |
| Storage temperature | -40°C to +105°C |
