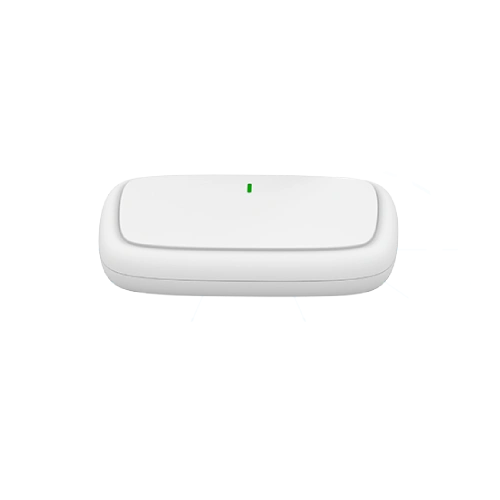

Trax20229 LTE 4G BLE Gateway
The Trax20229 LTE 4G BLE Gateway has a wide coverage area of up to 600 meters (open area), allowing it to swiftly scan a large number of tags and sensors, making it an ideal choice for logistics, warehouses, retail spaces, and exhibitions with high volumes of goods and foot traffic. The Bluetooth gateway supports multiple upload channels, including WiFi, Ethernet, and 4G, and automatically switches between different network standards to ensure exceptional performance in complex settings. It seamlessly integrates with other ble beacons and sensors and system platforms for real-time environmental monitoring, reducing the need for manual inventory checks and other labor-intensive tasks.
Description
Specifications
ITEM | ASPECT | |
Material | ABS+PC | |
Color | White | |
Power Supply | DC 12V/1A POE (IEEE 802.3af) | |
Network Connection | WiFi/Ethernet/LTE Cat.1 | |
Working Environment | Indoor | |
Working Temperature | 20-50°C | |
Working Humidity | 5%~95%RH, no condensation | |
Firmware Update | OTA, LAN, TF Card | |
BLUETOOTH | ||
Version | Bluetooth® LE 5.0 | |
Bluetooth Frequency | 2.4-2.4835 GHz | |
Bluetooth Bandwidth | 1 Mbps/125Kbps | |
Scan Range | 125Kbps: 400-600M 1Mbps: 150-250M (Open Area) | |
LTE CAT1 | ||
Frequency Band | CN(FDD):B1/3/5/8/9(TDD):B34/38/39/40/41 EU(FDD):B1/3/5/7/8/20/28 NA(FDD):B2/4/5/12/13/14/66 | |
Transmit Power | 23dbm | |
Receiver Sensitivity | -93.3dbm | |
WIFI | ||
Wireless Standard | IEEE 802.11 b/a/n | |
Network Protocol | HTTP(SSL/TLS)/MOTT(SSL/TLS & Proxy) /TCP | |
Wireless Encryption | WPA-PSK/WPA2-PSK, WPA-EAP/WPA2-EAP and TKIP |
