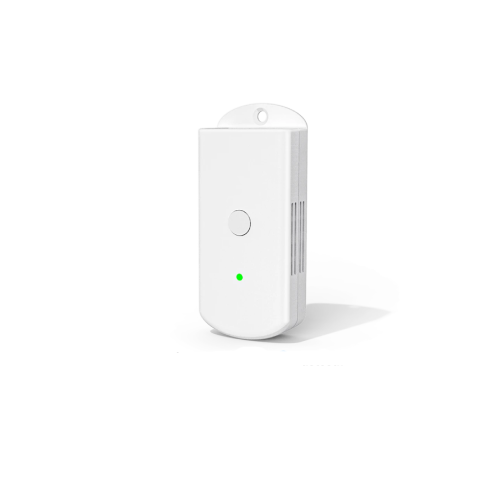

Trax20228 Ethernet WiFi Short Range BLE Gateway
The Trax20228 Ethernet WiFi Short Range BLE Gateway is an advanced, compact Bluetooth gateway developed and designed for seamless integration in various environments from industrial settings to office buildings and healthcare facilities this versatile device ensures reliable data transmission and connectivity. It supports both Ethernet (PoE) and Wi-Fi, offering flexibility in how you deploy and connect. Equipped with the Express if ESP32 chipset, the Trax20228 Ethernet WiFi Short Range BLE Gateway supports Bluetooth® BLE 5.x for enhanced performance, making it perfect for any application where stability, security, and efficient data transfer are critical.
- Stable, reliable connections with PoE or Wi-Fi
- Effortless setup with Link App configuration
- Compatible with a wide range of Bluetooth devices
- Compact and flexible installation for diverse environments
Description
Specifications
| ITEM | ASPECT |
| Material | ABS+PC |
| Color | White |
| Weight | 33g |
| Power Supply | IEEE 802.3af PoE |
| Network Connection | Ethernet, WiFi |
| Button | A multi-function button |
| Working Environment | Indoor |
| Working Temperature | -30-55°C (-22~131°F) |
| Firmware Upgrade | OTA, LAN upgrade |
| BLUETOOTH | |
| Version | Bluetooth® LE 5.x |
| Number of Received Data Packages | About 200 packets per second |
| Scan Coverage | About 90 meters of covered radius (open area) |
| WIFI | |
| WiFi Protocols | IEEE 802.11 b/g/n |
| WiFi Frequency | 2.4GHz (2412 – 2484 MHz) |
| WiFi Transfer Speed | 1T1R 150Mbps |
| Emitting Power (typical) | 802.11b, 1 Mbps@20.5dBm |
| Data Transfer Speed (20MHZ) | 11b: 1, 2, 5.5 and 11Mbps 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 11n: MCS0-7, 72.2Mbps (Max) |
| Data Transfer Speed (40MHZ) | 11n: MCS0-7, 15Mbps (Max) |
| Receiving Sensitivity (typical) | 802.11b, 1Mbps: -98.0dBm |
| Modulation Mode | BPSK/QPSK/16QAM/64QAM/DBPSK/DQPSK/CCK |
| Network Protocol | MQTT (SSL/TLS)/HTTP |
| Wireless Encryption | WEP,WPA-PSK, WPA2_PSK, WPA_WPA2_PSK |
