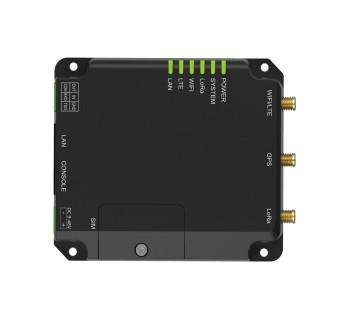

Trax20216-LoRaWAN Indoor Gateway
Trax20216- LoRaWAN gateway is an intelligent, configurable gateway for smart IoT applications. Gateway is based on the Semtech SX1301 chipset, allowing to operate on multiple channels at the same time. It also offers Ethernet interface for backhaul connectivity as well as cellular or WiFi network (optional). With its embedded network server, it is very suitable for small business or private area use cases, also perfect for providing network coverage for indoor blind spots.
Description
– Compliance to LoRaWAN Class A and Class C
– Up to 8 simultaneous channels
– Back haul connectivity (Ethernet/WIFI/3G/4G)
– Build-in DI/DO, serial port and GPS
– Long range over 10 km radius
– Embedded network server
| Item | Aspect |
| LoRaWAN | 1 × 50 Ω SMA (Center PIN: SMA Female) |
| Connector | 2 × 50 Ω N-Type (Center PIN: Female) for 16-channel model |
| Channel | 8 |
| Frequency Band | Supports EU 863-870, US 902-928, EU 433, AU 915-928, |
| CN 470-510 , IN865 and KR 920-923 Band | |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Hardware CPU | 800 MHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Ethernet Interface Port | 1 × RJ-45 (PoE PD Optional) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Cellular Interface (Optional) | SIM Slots-2 |
| Connectors | 1 × 50 Ω SMA (Center PIN: SMA Female) |
| Wi-Fi (Optional) | Standards -IEEE 802.11 b/g/n/ac |
| Connectors | 1 × 50 Ω N-Type (Center PIN: Female) |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) |
| 802.11g: 15 dBm +/-1.5 dBm (54 Mbps) | |
| 802.11n@2.4 GHz: 14 dBm +/-1.5 dBm (MCS7) | |
| 802.11n@5 GHz: 11 dBm +/-2 dBm (MCS7) | |
| 802.11ac@5 GHz: 10 dBm +/-2 dBm (MCS9) | |
| GPS (Optional) | 1 × 50 Ω SMA (Center PIN: SMA Female) |
| Sensitivity | -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition |
| Position Accuracy | <2.5m CEP |
| Protocols | NMEA 0183, PMTK |
| Serial Interface – Ports | 1 × RS232 |
| Connector | Terminal Block |
| Band Rate | 300 bps to 230400 bps |
| I/O connector | Terminal Bloc |
| Digital | 1 × DI + 1 × DO |
| Console Interface connector | 1 × RJ45 |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, |
| HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc | |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub |
| Reliability | WAN Failover, Dual SIM Backup |
| Serial Port | Transparent (TCP Client/Server, UDP), |
| Modbus Gateway (Modbus TCP to Modbus RTU), Modbus Master | |
| Power Supply | 2-pin with 5.08 mm terminal block, (Optional: 1 × 802.3 af/at PoE PD) |
| Input Voltage | 9-48 VDC |
| Power Consumption | Typical 2.3 W, Max 6.5 W |
| Ingress Protection | IP30 |
| Dimensions | 108 x 90 x 26 mm |
| Mounting | Desktop, Wall or DIN Rail Mounting |
| LED Indicators | 1 × POWER, 1 × SYSTEM, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × LAN |
| Built-in | Watchdog, RTC, Timer |
| Reset Button | 1 × RST |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | Humidity 0% to 95% (non-condensing) at 25°C/77℉ |
Applications:
- Smart Buildings
- Logistics and Supply Chain Management
- Smart Metering
- Fleet Management
- Smart Cities
- Smart Agriculture
- Industrial Automation
