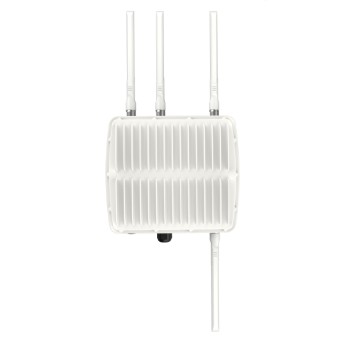

Trax20215-Industrial LoRaWAN Gateway
Trax20215-Industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with the Things Network. Compliant to LoRaWAN Class A and Class C, with back haul connectivity to (Ethernet/3G/4G/WIFI).
Description
– 8 or 16 Simultaneous channels optional
– IP67 Waterproof Casing
– Long Range over 10 km Radius
– Embedded Network Server and MQTT transmission
– Support GPS for high-precision time synchronization
| Item | Aspect |
| LoRaWAN | 1 × 50 Ω N-Type (Center PIN: Female) for 8-channel model or |
| Connector | 2 × 50 Ω N-Type (Center PIN: Female) for 16-channel model |
| Channel | 8 (Up to 16) |
| Frequency Band | EU433, CN470-510, EU863-870, IN865, US902-928, |
| AU915-928 and KR920-923 Band | |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Hardware CPU | 800 MHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Storage | 1 × M.2 slot supports SATA M.2 SSD |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Cellular Interface (Optional) | SIM Slots-2 |
| Connectors | 1 × 50 Ω N-Type |
| Wi-Fi (Optional) | Standards -IEEE 802.11 b/g/n/ac |
| Connectors | 1 × 50 Ω N-Type (Center PIN: Female) |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps) |
| 802.11g: 15 dBm +/-1.5 dBm (54 Mbps) | |
| 802.11n@2.4 GHz: 14 dBm +/-1.5 dBm (MCS7) | |
| 802.11n@5 GHz: 11 dBm +/-2 dBm (MCS7) | |
| 802.11ac@5 GHz: 10 dBm +/-2 dBm (MCS9) | |
| GPS | Connectors 1 × 50 Ω N-Type (Center PIN: Female) |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, |
| HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. | |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub |
| Reliability | WAN Failover, Dual SIM Backup |
| Power Supply | 1 × 802.3 af/at PoE input |
| Power Consumption | Typical 4.9 W, Max 6.5W (8 channels) |
| Typical 6 W, Max 8.2W (16 channels) | |
| Ingress Protection | IP67 |
| Dimensions | 256 x 226 x 90.5 mm |
| Mounting | Wall or Pole Mounting |
| LED Indicators | 1 × PWR, 1 × SYS, 1 × LoRa, 1 × Cellular |
| Built-in | Watchdog, RTC, Timer |
| Reset Button | 1 × RST |
| Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | Humidity 0% to 95% (non-condensing) at 25°C/77℉ |
| Air Interface | 4G/3G/2G (To be specified before shipment) |
Applications:
- Smart Buildings
- Logistics and Supply Chain Management
- Smart Metering
- Fleet Management
- Smart Cities
- Smart Agriculture
- Industrial Automation
