Trax20213E-Rugged Outdoor IP67 BLE Gateway
Trax20213E Gateway for high density of connected devices, a mesh network is the perfect solution for connectivity. Gateway connects a mesh of a few to hundreds of wire-less sensor devices to a cloud. Gateway can be connected to the internet over a wired Ethernet connection or wirelessly over a WLAN or Cellular (NB-IoT, CatM1 or 2G) connection. Advanced users can extend the Gateway platform by adding new supported data formats, cloud platforms or deploy edge computing applications.is extendable and runs edge applications. Stylish in design and compact in size, it fits any indoor environment.
Description
Gateway provides a powerful ARM based Linux platform for running edge compute applications. Developers can easily deploy and execute Python, Node.js, native GCC and other compiled applications. Gateway provides 16GB of storage and it can be further extended via USB. Easy integration with Microsoft Azure and Amazon Web Services is included and with our integration service the gateway can be connected to any cloud backend. Gateway with Water and Dust proof enclosure has been designed to protect the Gateway in outdoor or industrial indoor conditions. Enclosure includes gateway AC/DC power supply, DC cable and gateway holder. Class II design (no FG pin).
| Hardware | Software |
| ARM Cortex-A8 1GHz Processor | Development environment |
| 1 GB DDR3L RAM | ARM-based Linux OS (Yocto) |
| 16 GB eMMC Storage | Pre-loaded Python and Node.js |
| Power supply 5V DC | Native GCC |
| Size: ø95mm x 18,3mm | Optional tools on request * |
| Connectivity | Networking |
| USB A Host Port | Firewall (iptables) |
| Ethernet | Linux TCP/IP stack |
| 2G, LTE CAT M1 / NB-IOT | MQTT |
| Wi-Fi, BT & BT LE | BlueZ |
| 2.4GHz / Wirepas | Wirepas Connectivity Library |
| Micro SIM Card Slot | |
| BLE Beacons support | |
| Cloud support | iBeacon, Eddystone |
| Microsoft Azure | Advertising frame |
| Amazon Web Services | RSSI |
| Integration service to connect the gateway with any cloud* | MAC |
| BLE Gateway settings | Customization options |
| MAC filter | Branding and color*(* Volume dependent or at extra cost) |
| MAC regex | |
| RSSI filter | Fixing methods |
| Interval of sending beacons messages | Wall / Ceiling mount* |

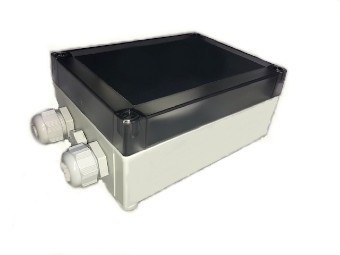

Enclosure specifications:
Degree of protection IP67 for enclosure
Material: Base Fiberglass-reinforced PC
Impact strength: IK08
Pressure equalizer plug,
NEMA 1-15 Class II Power Cords
Safety and EMC UL60950-1, TUV EN60950-1
EMC immunity EN61000 1,2,3,5,6,8,11
Surge L-N 1kV
