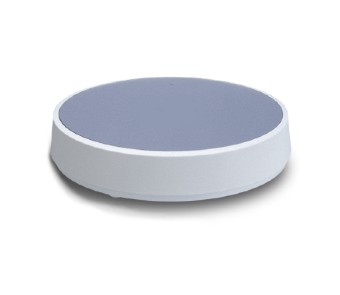

Trax20213-BLE MESH Gateway
Trax20213 Gateway for high density of connected devices, a mesh network is the perfect solution for connectivity. Gateway connects a mesh of a few to hundreds of wire-less sensor devices to a cloud. Gateway can be connected to the internet over a wired Ethernet connection or wirelessly over a WLAN or Cellular (NB-IoT, CatM1 or 2G) connection. Advanced users can extend the Gateway platform by adding new supported data formats, cloud platforms or deploy edge computing applications.is extendable and runs edge applications. Stylish in design and compact in size, it fits any indoor environment.
Description
Gateway provides a powerful ARM based Linux platform for running edge compute applications. Developers can easily deploy and execute Python, Node.js, native GCC and other compiled applications. Gateway provides 16GB of storage and it can be further extended via USB. Easy integration with Microsoft Azure and Amazon Web Services is included and with our integration service the gateway can be connected to any cloud backend.
Hardware | Software |
ARM Cortex-A8 1GHz Processor | Development environment |
1 GB DDR3L RAM | ARM-based Linux OS (Yocto) |
16 GB eMMC Storage | Pre-loaded Python and Node.js |
Power supply 5V DC | Native GCC |
Size: ø95mm x 18,3mm | Optional tools on request * |
Connectivity | Networking |
USB A Host Port | Firewall (iptables) |
Ethernet | Linux TCP/IP stack |
2G, LTE CAT M1 / NB-IOT | MQTT |
Wi-Fi, BT & BT LE | BlueZ |
2.4GHz / Wirepas | Wirepas Connectivity Library |
Micro SIM Card Slot | |
Customization options | |
Cloud support | Branding and color*(* Volume dependent or at extra cost) |
Microsoft Azure | |
Amazon Web Services | Fixing methods |
Integration service to connect the gateway with any cloud* | Wall / Ceiling mount* |
