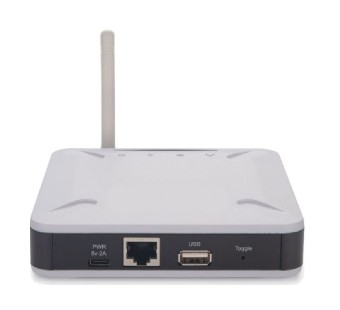

Trax20212-Indoor LoRaWAN Gateway
Trax20212 is an open source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. Gateway uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1308, which provides 10 programmable parallel demodulation paths.
Description
Gateway has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customize the frequency bands to use in their own LoRa network. Suitable for applications in Building & home automation, logistics and supply chain management, smart metering, agriculture, factory and cities.
| Features | LoRa Interfaces | Frequency Band (order info) |
| Open Source OpenWrt system | 1 x SX1308 + 2 x 1257 LoRa Transceiver | 915 (For Bands: US915,AU915, S923,KR920) |
| Emulates 49x LoRa demodulators | Up to -140 dBm sensitivity with | 868 (For Band: EU868,IN865) |
| LoRaWAN Gateway | SX1257 Tx/Rx front-end | WiFi Spec |
| Managed by Web GUI, SSH via LAN or WiFi | 70 dB CW interferer rejection at 1Hz offset | IEEE 802.11 b/g/n |
| 10 programmable parallel demodulation paths | Able to operate with negative SNR, CCR up to 9dB | Frequency Band: 2.4 ~ 2.462GHz |
| Hardware System | Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator | Tx power |
| Linux, 400Mhz ar9331 processor | Dual digital TX & RX radio front-end interfaces | 11n tx power : mcs7/15: 11db mcs0 : 17db |
| 64MB RAM, 16MB Flash | 10 programmable parallel demodulation paths | 11b tx power: 18db |
| General Interfaces | Dynamic data-rate (DDR) adaptation | 11g 54M tx power: 12db |
| 10M/100M RJ45 Ports x 1 | True antenna diversity or simultaneous dual-band operation | 11g 6M tx power: 18db |
| 1 x 2.4G WiFi (802.11 bgn) | Max Output Power: 20dBm | WiFi Sensitivity |
| 1 x USB Type C port for power | Sensitivity: -140dBm | 11g 54M: -71dbm |
| 1 USB Type host port | Dimensions and Weight | 11n 20M : -67dbm |
| Power Input via USB: 5v, 2A | Device: Size:120x120x30mm/pcs Weight: 187g | |
| Package: Size:145x135x60mm/pcs Weight: 300g |
