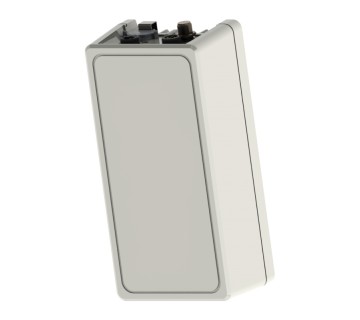

Trax20210-Industrial Outdoor IoT Gateway
- Trax20210 features LoRaWAN gateway for industrial outdoor deployments
- Small form factor and low power consumption, rated IP67 it is designed for the most demanding outdoor installations
- High availability carrier grade design with support for in-service configuration and software updates
- Reduce set-up costs with plug-and-play installation utilizing the custom provisioned factory image
- Optimize coverage and capacity with a cost-effective and extremely compact LoRaWAN® gateway
Description
- Quick and easy deployment made possible with custom mounting options, including utility pole, lamp post, tower, roof or wall mounts
- Fully integrated with the broad Eco-system of LoRa™ network servers and sensors
- Excellent out of band rejection of Interference from other networks such as Cellular and Paging
- Lower site operational costs due to low power consumption and passive cooling
| Item | Aspect |
| Radio – ISM Bands (FDD) | NA902-928, CN470-510 |
| ISM Bands (TDD) | NA915, EU868, AU915, AS923, JP920, CH779 |
| Tx Power | 27 dBm |
| Rx Sensitivity | -142 dBm (SF12, 293 bits/sec) |
| Rx Noise Figure | 3.5 dB |
| Rx Linearity | -10 dBm |
| Rx Dynamic Range | 70 dB Analog, 100+ dB Digital |
| Ethernet Backhaul | RJ-45 |
| GPS | (internal antenna) |
| Cellular Backhaul (3G/4G) | (internal antenna) |
| LoRa Antenna | N-Type |
| Power | -48VDC or PoE (802.3at) |
| Networking | DHCPv4 client, TFTP server, HTTP server, Firewall and Access Lists |
| Safety | UL60950-1(US/C) IEC 60950-1 (CE) |
| Environmental | ETSI EN 300 019-2 |
| Regulatory | FCC Part 15.247, 109, 209, ETSI EN 55022 Class B, ETSI EN 55024, ETSI EN 300 489-1/-3 |
| MTBF | 850,000 hours |
| DC Power Consumption | < 20 W |
| Operational Temperature | -40°C to +60°C |
| Operational Humidity | 10% to 100% Condensing |
| Ingress Protection | IP67 |
| Size | 144 x 282 x 92 mm |
| Weight | 2.6 kg |
| Volume | 3.7 L |
| Tools | Access Control List Management System, Health Monitor, Remote Software Upgrade, 3G/4G Parameter Configuration, Field Configuration Tool, Factory image provisioning, Radio Configuration and Control |
| Order details | Ethernet (Standard) |
| Optional configuration | Cell Modem (optional) Cell Modem, Geolocation (optional) Ethernet Geolocation (optional) |
