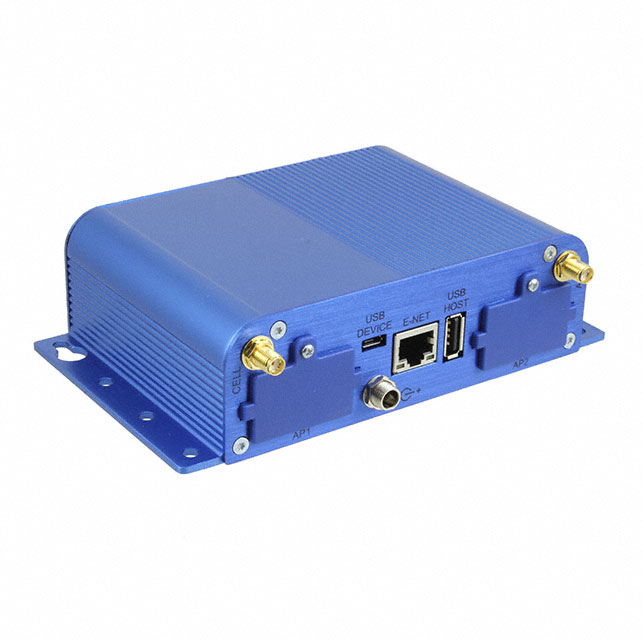

Trax20209-Long Range BLE IoT Gateway
- Trax20209 features BLE Beacons / LoRaWAN
- Easily configurable, manageable, and scalable cellular communications gateway
- Supports BT Classic and BLE 4.1 communication with automatic pairing with 128-bit link key length security
- Global Navigation Satellite System (GNSS) module for LoRaWAN packet time-stamping and geo-location capability
- Certified for North American 915 MHz, Europe 868MHz, Australia 915MHz and Japanese AS923 MHz ISM bands
Description
- Ethernet and optional 4G-LTE, 3G, 2G cellular for cost effective deployment
- WiFi communication supporting 802.11 a/b/g/n 2.4 GHz and 5GHz with WPA2 personal transmission security
- LoRaWAN compliant, providing bi-directional data communication up to 10 miles line-of-sight and 2-3 miles in buildings
- Communication using the global sub-GHz ISM radio bands in North America, Europe, and the APAC region
- WiFi Access Point and Client modes are supported simultaneously
- Listen Before Talk LoRa operating protocol
| Item | Aspect |
| Processor & Memory | ARM9 processor with 32-Bit ARM & 16-Bit Thumb instruction sets • 400 MHz • 16K Data Cache • 16K Instruction Cache • 128X16 MB DDR RAM • 256 MB Flash Memory |
| Wi-Fi / BLE (-275 models) | WiFi: 802.11abng (2.4 & 5 Ghz) BLE Beacon Compatible: Classic 4.1 and BLE |
| GPS/GNSS | GNSS for LoRa Packet Time Stamping Concurrent GNSS connections: 3 GNSS Systems Supported (default: concurrent GPS/QZSS/SBAS and GLONASS) |
| LEDs | PWR (Power), STATUS (Power Status), LS (Link Status), CD (Carrier Detect), SIGNAL (Signal Strength) |
| Input Voltage | 9 VDC 1.7A input provided to 100 – 240 VAC 50/60 Hz external adaptor or fused DC Power Cable |
| LoRa Frequency Band/ Power output | 915 MHz (US) / 27 dBm maximum output power before antenna |
| Channel Capacity | 8-channels (half-duplex) |
| Ethernet | RJ45 Ethernet jack (10/100 port) |
| USB DEVICE | USB 2.0 Micro B connector |
| USB HOST | USB 2.0 Type A connector |
| Antennas | Cellular, GPS, LoRa: female SMA / LoRa: reverse polarity female SMA |
| SIM | 2FF Mini SIM |
| SD Card | Micro SD Card, 32GB (HSMCI) max (industrial temperature range recommended) |
| Antennas | Cellular, GPS, LoRa: female SMA / LoRa: reverse polarity female SMA |
| Dimensions (LxWxH) | 6.35″ x 4.23″ x 1.69″ (161.3 mm x 107.4 mm x 42.8 mm) |
| Physical Weight | 1.0 lbs (0.45 kg) with two accessory cards installed |
| Chassis Type | Anodized aluminum (blue) |
| Operating Temperature | -30° to +70° C* |
| Storage Temperature | -40° to +85° C |
| Humidity | Relative humidity 20% to 90%, non-condensing |
| EMC Compliance | US: FCC Part 15 Class B Canada: ICES-003 Class B Australia: CISPR 32 EU: EN 55023 Class B, EN 301 489-3 V2.1.1, EN 301 489-1 V2.2.0, EN 301-489-52 V1.1.0 |
| Radio Compliance | US: FCC Part 22, 24, 27 Canada: ISED-003 AU: AS/NZS 4268:2012 + A1:2013 MPE Standard 2014 |
| Safety | UL/cUL 60950-1 , UL/cUL 62368-1 |
| Quality | MIL-STD-810G: High Temp, Low Temp, Random Vibration. SAE J1455: Transit Drop & Handling Drop, Random Vibration, Swept-Sine Vibration. IEC68-2-1: Cold Temp. IEC68-2-2: Dry Heat. |
| Optional accessories | Gateway with installed Lora-915 accessory card and power supply with regional-specific blades, appropriate antennas, Ethernet cable, USB cable and quick-start guide and GNSS Antenna |
