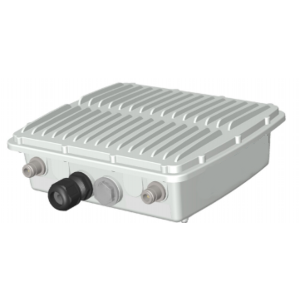

Trax20208-IP67 IoT BLE LoRaWAN Gateway
- Trax20208 is a ruggedized IoT Gateway, specially designed for outdoor installation
- Enhanced security- all geolocation packets are fine timestamped and AES encrypted
- Designed for harsh environments, operating temperature between -30° to +75° C
- WAN connection via Ethernet or Cellular
- Applications could be designed for healthcare, logistics, construction, oil & gas and mining industries
Description
- Processing Ethernet, Serial. Gateway – 3G, 4G, HTTP, CoAP, JSON, MQTT, Ethernet
- Cellular PPP, DHCP client and server
- Linux version (Linux 4.9), including access to over 500 resolved Common Vulnerabilities and Exposures (CVE)
- Hardware support for cellular, LoRaWAN, WiFi/BT/ BLE Support, and GNSS/GPS
- Compatible with v2.1 capable LoRa Network Server
| Item | Aspect |
| Processor & Memory | ARM9 processor with 32-Bit ARM & 16-Bit Thumb instruction sets • 400 MHz • 16K Data Cache • 16K Instruction Cache • 128X16 MB DDR RAM • 256 MB Flash Memory |
| Wi-Fi / Bluetooth Low Energy (-275 models) | WiFi: 802.11abng (2.4 & 5 Ghz) Bluetooth Low Energy: Classic 4.1 and BLE |
| GPS/GNSS | GNSS for LoRa Packet Time Stamping Concurrent GNSS connections: 3 GNSS Systems Supported (default: concurrent GPS/QZSS/SBAS and GLONASS) |
| LEDs (*) | PR (Power), ST (Status, user-programmable), L1 (user-defined), L2: (user-defined) |
| LoRa Frequency Band/ Power output | 915 MHz (US) / 27 dBm maximum output power before antenna |
| Language support | Python, C, C++, Javascript |
| Package upgrade support | Java, Perl, Ruby, Mono C# |
| Ethernet | RJ45 Ethernet jack (10/100 port) (POE) |
| USB HOST (*) | USB 2.0 Type A connector |
| Antennas | Cellular, GPS, LoRa: female SMA / LoRa: reverse polarity female SMA |
| SIM (*) | 3FF Micro SIM |
| Dimensions (LxWxH) | 262 mm x 91 mm x 257 mm |
| Physical Weight | 2.75 kg |
| Chassis Type | IP67-rated, Aluminum |
| Operating Temperature | -30° to +75° C |
| Storage Temperature | -40° to +85° C |
| EMC Compliance | US: FCC Part 15 Class B Canada: ICES-003 Class B |
| Radio Compliance | US: FCC Part 22, 24, 27 Canada: ISED |
| Safety | UL/cUL 60950-1 | UL/cUL 62368-1 |
| Quality | MIL-STD-810G: High Temp, Low Temp, Random Vibration. SAE J1455: Transit Drop & Handling Drop, Random Vibration, Swept-Sine Vibration. IEC68-2-1: Cold Temp. IEC68-2-2: Dry Heat. |
| Optional accessories- Not included | Mounting kit, Outdoor coax cables N Type 5 feet, Lightning arrestor |
