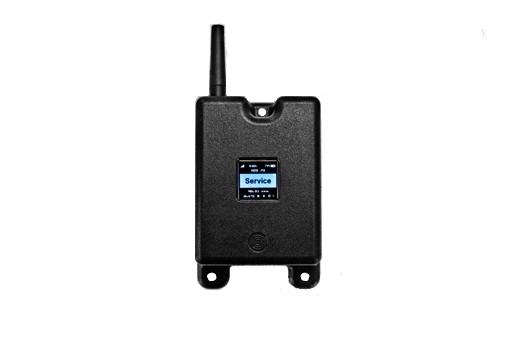

Trax20206- BLE Beacon Gateway
- Trax20206 is a very Rugged Bluetooth BLE Gateway designed for harsh environments
- BLE Gateway receives data from all sensors that transmit data via Bluetooth
- BLE Gateway with read ranges up to 20meters
- Built-in battery has up to 36 – 60 months lifetime (depending on the adjustable transmission interval)
- Colour display for rapid reading of the current sensor values on site, screen size 1,5″ OLED Display
Description
- Programmable via PAWN script (similar to C) you can adjust the BLE Gateway exactly to your custom specific application
- Integration available with API
- Extremely energy efficient M2M technology
- Optional add-on module, data transmission via GSM available
- Fields of application, Harsh Industrial plants, sewage systems, waste water systems, oil & gas facilities that require continuous monitoring of sensitive data like temperature, humidity, pressure, water flow and other sensor related monitoring
| Item | Aspect |
| Protection class | Complete system: IP66 Gateway: IP66 / IP68 / IP69Sensor: IP66 |
| Temperature measurement range | -20…+50°C |
| Operating temp | -20…+50°C |
| Storage and transport temperature | -20…+50°C |
| Air humidity | 15…90%rH non-condensing |
| Pressure range | Atmospheric +/-10% |
| Life cycle of the H2S sensor | 2 years in the air |
| Power supply | Built-in Battery, 36 – 60 months lifetime (depending on the adjustable transmission interval) |
| Data memory | 82.776 measurement cycles |
| Dimensions (WxHxD) | 106 x 169 x 61mm |
| Weight | 690g |
| Transmission | Bluetooth Low Energy Range of approx.20m |
| Displays | 1,5″ OLED Display |
| Optional – Sensor modules (H2S 7H Sensor module) H2S measurement range | 0-200ppm; max. 1000ppm 0,25ppm resolution 1% repeat accuracy |
