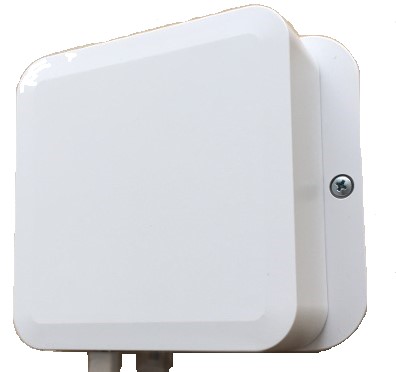

Trax20205-MESH BLE Gateway
- Trax20205 MESH BLE Gateway is with BT5-ready BLE module and LAN/WLAN interface compatible with Wirepas Mesh networks
- Wirepas Network Tool application for configuration and diagnostics
- BLE module with Nordic nRF52832 SoC
- Supports BLE beacons and sensor BLEs
- Elegant plastic enclosure suitable for wall or ceiling installation
Description
- Mode of operation through Wirepas sink device
- Read range up to 200 meters
- Processor is 1.2GHz 64-bit quad-core Broadcom ARMv8, 1GB RAM
- Connectivity through Ethernet, WiFi (802.11)
| Item | Aspect |
| Frequency | 2.402 to 2.480 GHz |
| Transmission power | up to +4dBm |
| Sensitivity | -96dBm |
| Read range | Up to 200mt (LOS free-space, version W/INT |
| Antenna (options) | version W/INT: medium-directivity patch-antenna version W/SMA: SMA connector for external antenna |
| Power voltage | 5VDC (microUSB connector) |
| Current | 1.5A (max) |
| Enclosure material | ABS (flame-resistant UL94V-0) |
| Size | 120 x 120 x 45 mm (excluding flanges) |
| Protection | IP40 |
| Operating temperature | 0°C to +50°C |
| User interfaces | Power-on led, ethernet-activity led, factory-reset button |
| Optional | RTC (with internal coin battery) |
