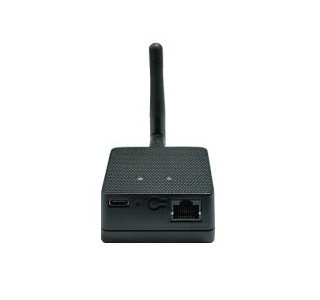

Trax20202-Ethernet Gateway
Trax20202 BLE Ethernet (PoE) gateway. It supports the latest BT Low Energy 5.0 standard and supports iBeacon, Eddystone and customized BLE compatible beacons (w/ sensor) format and sends to standard servers, like TCP, HTTP, and MQTT through Ethernet. It also supports cloud servers, such as Amazon AWS-IoT, Microsoft Azure-IoT, and Google Cloud-IoT-Core. Users can configure the gateway through a simple web UI or Telnet command console.
Description
Supports 10/100M POE Ethernet, built-in with IEEE 802.3az Energy Efficient Ethernet, capable of collecting up to 200 beacons per second with data rate of 150Mbps. BLE antenna has a read range of 100 meters. BLE Gateway supports long range mode(LE Coded PHY).
| Item | Aspect |
| BLE Gateway Transmit Power | Max.: +4dBm |
| Receiver Sensitivity | -97 dBm @1 Mbps -104 dBm @125 Kbps (LE Coded PHY, long range) |
| RSSI Accuracy | ±2 dB(typical), in valid range -90 to -20 dBm |
| Antenna | 2dBi dipole antenna |
| Range | >100Meters in open space |
| BLE Beacons | Supports iBeacon and Eddystone, BLE 5.0 standards |
| BLE | Long Range mode( LE Coded PHY) |
| Data rate | up to 150 Mbps |
| Connectivity | TCP/HTTP(S)/MQTT(S) server |
| Upload support | JSON format upload |
| Ethernet (PoE) | 10/100M POE Ethernet |
| Support | IEEE 802.3az Energy Efficient Ethernet |
| Crossover | Auto MDI/MDIX crossover function |
| PoE | IEEE 802.3af, +44 Vdc~57 Vdc input |
| PoE mode | mode A(power from 1-2, 3-6) mode B( power from 4-5, 7-8) |
| Low power consumption | 90mA average working current |
| Root | Support Root CA/User certificate and private key uploading |
| Supply Power | Max. +5.5 Volt |
| Storage Temperature | -40º to 85º Celsius |
| Operating Temperature | -20º to 60º Celsius |
| Humidity | Max 95%, Non condensing, relative humidity |
| Supply Power | +5 Volt +- 5%, 1A through USB type-C connector |
| Power Consumption (working mode) | 0.45W average |
| Dimensions L x W x H (mm) | 54mmx 54mm x 24mm (not including antenna and antenna connector) |
| Weight | 46g without the BLE antenna |
| Certified | CE, FCC, TELEC, BLE 5.0, (KC/NCC pending) |
Applications:
- Real Time Asset Tracking
- Employee Locating
- Access Management
- Building Automation
- Industrial Automation
- Transportation
