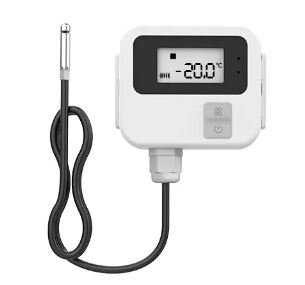

Trax10245-Industrial Temperature Humidity with Probe BLE Sensor
Trax10245 Industrial Temperature and Humidity with display and probe BLE sensor is a BLE (BLE Low Energy / version smart 5.0) Beacon with e-paper display screen. It is compatible with both iBeacon and Eddystone (UID, URL, TLM) protocol. Trax10245 BLE sensor is an ideal solution for applications monitoring environmental conditions, such as Cold Chain monitoring, Warehouse & Storage monitoring, Greenhouse monitoring and Acceleration monitoring etc. Sensor is capable of locally storing up to 20,480 data records.
Description
Trax10245 is an industrial temperature and humidity sensor built to suit all industrial scenarios for environmental monitoring, especially in manufacturing, healthcare, and warehousing. It features settable alarm thresholds for temperature and humidity, and a long broadcast distance of up to 656 ft (200 m). One of the key features of Trax10245 is its ability to support optional probes. These probes can be used to measure temperature and humidity levels in a variety of settings to fit specific applications.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz |
| Standards | BLE Low Energy 5.0 |
| Chip | nRF52 series |
| Antenna | PCB Antenna |
| E-Paper display | Real Time display of Temperature & Humidity |
| Display info | Degrees Celsius and Fahrenheit |
| Temperature accuracy | ±0.4℃ (-30℃~70℃) |
| Humidity accuracy | ±3%RH (0%RH~100%RH (@25℃)) |
| Sensors | Temperature & Humidity Sensor, |
| Sensor probe | 1m to 2 m / 3.28 to 6.56 ft cable length |
| Storage | Max storage up to 20,480 records |
| Battery | 1 Lithium battery, 2700 mAh |
| Battery Capacity | 2700mAh |
| Battery Life | Up to 3 years |
| Reading Range | 100- 200 meters/ 656 ft depends on environment conditions |
| IP Rated | IP65 main body, Probe IP67 |
| Transmission power | 0dBm |
| Transmission interval | 1,000ms |
| Dimensions | 75mm x 66.5mm x 27mm / 2.96 x 2.61 x 1.06 inches without the mounting bracket |
| With Mounting Bracket | 82mm x 66.5mm x 31.3mm / 3.22 x 2.61 x 1.23 inches with the mounting bracket |
| Color | White |
| Material | ABS plastic housing |
| Operating Temp | -40℃~+125℃ |
| Weight | 128.9g |
| Installation | Mounting bracket, Double side tape |
| Certificates | CE, FCC, Bluetooth QDID/EPL, RoHS, REACH, SRRC |
| Custom configuration | Mobile APP, iOS and Android system |
Applications
- Asset Tracking
- Hospitals
- Logistics
- Cold storage
- Inventory Control
