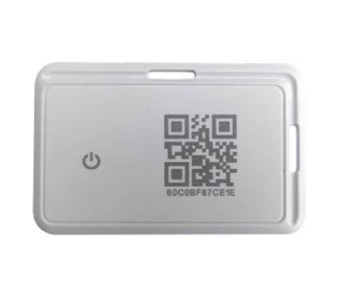

Trax10241-Wirepas ID Badge Tag
Trax10241 Wirepas ID Badge Tag compatible with Wirepas Technology and it is designed to full fill all requirements for people locating and security applications. Smart Badge Wirepas 5.1 corresponds to the latest generation of Wirepas 5.1 based tags developed. The accelerometer parameters are configurable in order to adjust them to the final needs of the application. An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro payments.
Description
Trax10214 Wirepas ID Badge Tag due to its optimized and ultra low power consumption, the tag guaranties unsurpassed battery lifetimes with in addition, the possibility to replaceable its CR2016 battery. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. ID badge is delivered with MAC address and QR code laser engraved.
| Item | Aspect |
| Standards | WirepasV5.1, Blue-tooth Low Energy V 5.0, NFC |
| Technology | Wirepas protocol supported |
| Wirepas 5.1 protocols supported, 3D Accelerometer sensor | |
| Two LEDs: Green and Red color (Customizable) | |
| Frequency | Blue-tooth BLE 2.45GHz and Optional NFC 13.56MHz |
| NFC (optional) | ISO/IEC15693 (NFC Forum Tag Type 5) ISO/IEC I4443 (NFC Forum Tag Type 2) |
| Battery | CR2016 non replaceable |
| Battery Life | Up to 3 years depending on the Wirepas tag parameters |
| Reading Range | 100 Meters for Wirepas , 75 meters (BLE), 10 cm (NFC), Line of Sight up to 200 meters |
| Accelerometer Sensor | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Accelerometer Sensor | Capable of measuring accelerations with output data rates from 1.6 Hz to 1600 Hz |
| Switch | Customizable under request |
| Dimensions | 85.60mm x 54.00mm x 5.00mm |
| Color | Available in White, Grey |
| Material | ABS |
| Weight | 30.00 g |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP67 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach, Conflict free sourcing |
| Optional Printing | Silkscreen printing, Laser Engraving |
| Beacon attachment | Lanyard (Not included) |
| Standard Badge | Wirepas 5.1 Smart ID Badge with Accelerometer |
| Customize Badge | NFC, printing, personalization and other features |
Applications:
- Patient Tracking
- Access Control
- Fitness and SPA
- Employee monitoring
