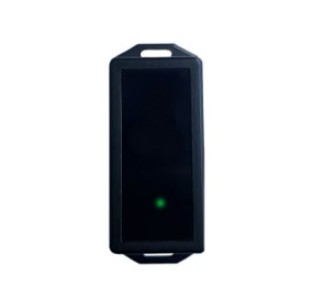

Trax10224-Tilt Dual Axis BLE Sensor
Trax10224 Tilt Dual Axis BLE Sensor is a long range wireless sensor which can be used for monitoring of angle between the device and floor level (ground). The device gives 2 separate outputs of the angle of tilt as Tilt X and Tilt Y (as an example: Tilt X: +10,0 degree and Tilt Y: -15,0 degree). This sensor is compatible with Bluetooth 5.0 technology. The standard version of this sensor is powered by one replaceable 3.6 V AA sized battery.
Description
Tilt Dual Axis Bluetooth Low Energy Sensor is easy to configure and mount on equipment with less maintenance. Designed with a robust housing (ABS material) and built-in internal antenna, 2 Plane Double Axis Tilt BLE sensor provides data security AES-128-bit encryption.
Item | Aspect |
Bluetooth Standard | BLE 5.0 compatible |
Frequency | 2.45GHz ISM band |
Antenna | Internal PCB |
Transmit power | Up to +4 dBm TX power |
Sensitivity | -96 dBm RX sensitivity |
Sensor Output | Tilt of the X-axis and Tilt of the Y-axis |
Sensor resolution | 0.01 degree |
Data Transmission Period | Every 15 minutes(default) |
Data Security | AES-128 |
Power Supply | AA Battery 3.6 V Li-SOCl2-Saft LS 14500 (Standard 1 piece) |
Weight | 0.1 kg |
Dimensions | 3.5 × 7.0 × 3.3 cm |
IP Rating (Enclosure) | IP65 (Standard) |
Battery type | 3.6V Li-SOCl2 (AA size 1x) |
Certified | CE, BLE, EN 62479, EN 60950, EN 301 489-1, EN 301 489-17, EN 300 328 |
Applications
- Industrial applications
- Condition monitoring
- Beam/ construction monitoring
