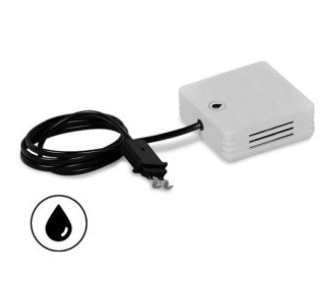

Trax10216-Water Leak Detector BLE Beacon
Trax10216 – Water leak detector BLE sensors are used in places where uncontrolled leakage can cause large damages, BLE Beacon sensors are ideal for monitoring leakage from heating devices, air conditioning systems, warehouse, server rooms, laboratories, dishwashers, washing machines, pumps and refrigerators or freezers.
Description
Using a free mobile application to configure the device and read the data from its memory. If you have Gateways collecting data via BLE Beacon interface, you easily setup remote monitoring systems. Battery ensures up to 5 years of maintenance free operation.
| Item | Aspect |
| Liquid Leak Sensor | Measurement of the presence of conductive liquid at the level at which the probe is mounted |
| Communication | BLE |
| Radio Frequency | 2,4 GHz |
| Power | 2,5 mW (4 dBm) |
| Range | 20 -30 meters indoors, up to 100 m (Open spaces) |
| BLE Beacon Standard | BLE 4.0 |
| Transmission frequency | 1s |
| Battery | Battery: 3,6 V, size AA, capacity 2 700 mAh (replaceable) |
| Battery life time | Battery operating time: at least 5 years (Intervals: 15 min) |
| Sensor storage/memory | Up to 60,000 measurements stored |
| Dimension | 27 x 71 x 71 mm |
| Weight | 80 g |
| Certified | BLE 4.0, CE, EMC & Radio Spectrum Efficiency |
Applications
- Server rooms
- Warehouse
- Cold storage
- Inventory Control
