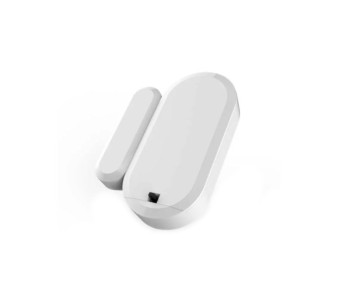

Trax10210-Magnetic Door BLE Sensor
Trax10210 Magnetic Door and Window Sensor is loaded with BLE Beacon 5.0 hardware platform, can be installed on the doors, windows and even desk drawer to detect the opening and closing of doors. BLE Sensor can send wireless notifications to end user applications based on set parameters.
Description
Trax10210 consists of two parts, a main sensor body, mounted to the door or window frame, and a magnet to be mounted to the door or window. Trax10210 Door and Window Sensor is an affordable way to add security and automation to the existing smart IoT system.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz |
| BLE Beacon Standards | iBeacon format |
| Standards | BLE Standard 5.0 |
| Chip | nRF52 series |
| Data Storage | 2000 records |
| Configuration range | 20 meters |
| Antenna | PCB Antenna |
| Configuration | MSensor, iOS & Android |
| Transmit Power | 0dBm (-20~+4dBm) |
| Battery | CR2032 x 1 |
| Capacity | 220mAh |
| Battery Life | Up to 13 months |
| Operating Voltage | DC 3.0V |
| Battery replaceable | Yes |
| Reading Range | Up to 50 meters depends on environment conditions |
| IP Rated | IP65 Waterproof grade |
| Dimensions | Sensor 55×26.2x13mm, Magnet 38.5×12.5x11mm |
| Color | White |
| Material | ABS plastic housing |
| Operating Temp | -20°C to +60°C (Battery limit) |
| Operating Humidity | 0~95%RH(non-condensing) |
| Weight | 26.6g |
| Installation | Double sided adhesive |
| Certificates | CE, FCC, RoHS |
Applications
- Asset Monitoring Tracking
- Security
- Logistics
- Cold storage
- Inventory Control
