Trax10208-Temperature Humidity with Display BLE Sensor

Trax10208-Temperature Humidity with Display BLE Sensor

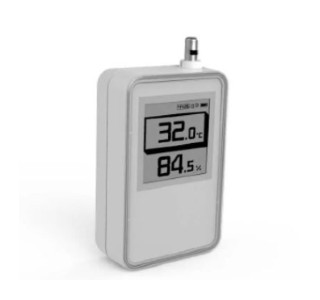

Trax10208 Temperature and Humidity with display sensor is a BLE Beacon 5.0 with e-paper display screen. It is compatible with both iBeacon and Eddystone (UID, URL, TLM) protocol. It can convert the environmental temperature and humidity into correspondent digital signal and stores up to 2000 records

SKU: Trax10208-Temperature Humidity with Display BLE Sensor Categories: ,

Description

Trax10208 BLE sensor is an ideal solution for applications monitoring environmental conditions, such as Cold Chain monitoring, Warehouse & Storage monitoring, Greenhouse monitoring and Acceleration monitoring etc.

ItemAspect
Operating FrequencyBLE 2.45 GHz
StandardsBLE 5.0
ChipnRF52 series
AntennaPCB Antenna
E-Paper displayReal Time display of Temperature & Humidity
Display infoDegrees Celsius and Fahrenheit
Temperature accuracy±0.4℃ (-25℃~60℃)
Humidity accuracy±3%RH (0%RH~90%RH (@25℃))
Refresh Interval30 min
SensorsTemperature & Humidity Sensor, Accelerometer Sensor (optional)
StorageMax storage up to 2000 records
BatteryER14250, DC3.6V
Battery Capacity1,200mAH
Battery LifeUp to 2.5 years
Reading Range60 – 100 meters depends on environment conditions
IP RatedIP66 Waterproof
Transmission power0dBm
Transmission interval1,000ms
Dimensions72.2mm x 45mm x 22mm
ColorWhite
MaterialABS plastic housing
Operating Temp-40℃~+70℃
Weight61.5g
InstallationDouble sided adhesive
CertificatesCE, FCC, BLE QDID/EPL, RoHS, REACH, SRRC
Custom configurationMSensor, iOS and Android system



Applications

  • Asset Tracking
  • Hospitals
  • Logistics
  • Cold storage
  • Inventory Control
