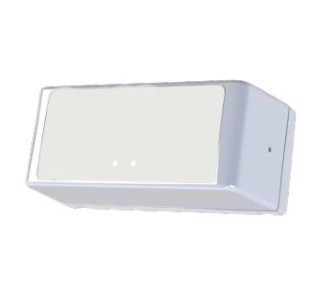

Trax10207-Asset BLE and LoRaWAN Sensor
Trax10207 Asset BLE and LoRaWAN Tracker is an ideal solution for locating, tracking and managing people, assets in difficult RF environments. This device combines the long range, low power benefits of LoRaWAN® with the universal availability and reliability of BLE. The unit is equipped with an accelerometer to accommodate event-based start-up, minimizing unnecessary battery usage.
Description
BLE & LoRaWAN Sensor is an ideal solution for applications indoor and outdoor monitoring assets, equipment’s and vehicle in harsh environmental conditions, like oil & gas industry, mining and industrial warehouse & Storage monitoring, container management type of solutions.
| Item | Aspect |
| Standards supported | BLE & LoRaWAN |
| Operational Temp | 0° C to + 60°C |
| Ingress Protection | IP30 |
| Size | 65x 24.5x 26mm |
| Battery | AA LTC |
| Battery life | 5-10 years (Depends on transmission interval) |
| Sensor | Accelerometer |
| RF Power | 15 dBm |
| RF Sensitivity | up to -137dBm (SF12, 125kHz) |
| ISM Band | All Global ISM Bands |
| LoRa Device Class | Class A |
| Safety | IEC 60950-1 (CE) |
| Regulatory | ETSI EN 300 220, ETSI EN 301-489-1/-3 |
| FCC 15.247 FCC 15.209 | |
| RSS-247 RSS-GEN | |
| Data Transmission | via LoRaWAN™ and BLE |
| Optional Sensors | Temperature and Humidity Sensor |
| Antenna | Internal antenna |
Applications
- Asset Tracking
- Industrial warehous
- Logistics
- Oil & Gas
- Container Management
