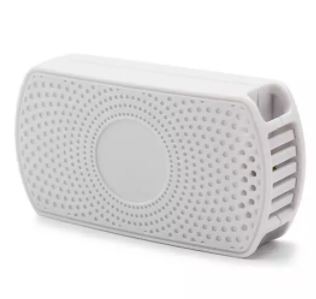

Trax10206-Temperature Humidity BLE Sensor
Trax10206 Temperature and Humidity Sensor is a BLE Beacon Standard 5.0, with an option of accelerometer sensor to detect motion. It is compatible with both iBeacon and Eddystone (UID, URL, TLM) protocol. It can convert the environmental temperature and humidity into correspondent digital signal and stores up to 200 records.
Description
Trax10206 BLE sensor is an ideal solution for applications monitoring environmental conditions, such as Cold Chain monitoring, Warehouse & Storage monitoring, Greenhouse monitoring and Acceleration monitoring etc.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz |
| Standards | Low Energy Beacon – BLE 5.0 |
| Chip | nRF52 series |
| Antenna | PCB Antenna |
| Sensors | Temperature and Humidity Sensor, Accelerometer Sensor |
| Storage | Max storage up to 200 records |
| Battery | 2*FR03 Li-Fe battery; replaceable |
| Battery Capacity | 1100mAH |
| Battery Life | Up to 3 years |
| Reading Range | 30 – 70 meters depends on environment conditions |
| IP Rated | IP65 Waterproof |
| Transmission power | -40dBm, -20dBm, -16dBm, -12dBm, -8dBm, -4dBm, 0dBm, 4dBm |
| Transmission interval | From 100ms to 5000ms |
| Dimensions | 70.6mm x 38mm x 17.8mm |
| Color | White |
| Material | ABS plastic housing |
| Operating Temp | -40℃~+70℃ |
| Weight | 43g |
| Installation | Double sided adhesive |
| Certificates | CE, FCC, BLE Beacon QDID/EPL |
| Custom configuration | iOS and Android system |
Applications
- Asset Tracking
- Hospitals
- Logistics
- Cold storage
- Inventory Control
