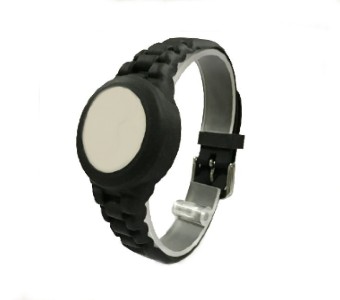

Trax10205-Wirepas Wristband Beacon
Trax10205 Wirepas Wristband beacon compatible with Wirepas Technology and it is designed to full fill all requirements for people locating and security applications. Optimized and ultra-low power consumption, beacon guarantees un-surpassed battery lifetime. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
Personal Identification such as access control for amusement parks, hospitals, patient monitoring, exhibitions, events and people employees flow management, spa and fitness club. An optional NFC function can be added in order to provide extra functionalities as registration, access control and micro-payments.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Wirepas protocol supported |
| Standards | Bluetooth Low Energy V 5.0, Wirepas, NFC |
| NFC optional | ISO/IEC15693 (NFC Type 5), ISO/IEC14443 (NFC Type 2) |
| Battery | CR2032 – 3 Volts Lithium battery |
| Battery Life | Up to 3 years depending on the Wirepas beacon parameters |
| Reading Range | Up to 75 meters (BLE), 10 cm (NFC), Line of Sight up to 200 meters |
| Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor | Accelerometer sensor |
| Switch | Customizable under request |
| Dimensions | Diameter 30mm, strap 255 x 16 x 2.4mm |
| Color | Available in White, Black |
| Material | PVC tag, Silicon strap |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP67 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Standard version | Adhesive Beacon with Accelerometer |
| Trax10205 Option-2 | Adhesive Beacon with Accelerometer, NFC (Type 5) |
| Trax10205 Option-3 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Patient Tracking
- Access Control
- Fitness and SPA
- Employee monitoring
