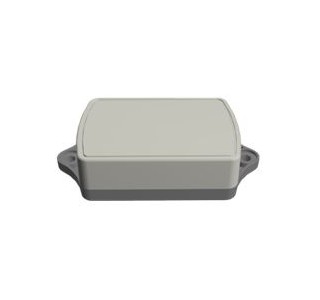

Trax10204-Rugged Durable Wirepas Beacon
Trax10204 Rugged durable Wirepas beacon compatible with Wirepas Technology and it is designed to full fill all requirements for asset tracking, logistics or predictive maintenance applications. Optimized and ultra-low power consumption, beacon guarantees un-surpassed battery lifetime with battery replaceable features (AA Batteries). Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
An optional temperature sensor enriches the overall functionalities, enabling capabilities for cold chain monitoring. An optional NFC function can be added in order to provide extra information on the asset (Manual, Last date of maintenance, Location) and/or easy pairing function.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Wirepas protocol supported |
| Standards | Bluetooth Low Energy V 5.0, Wirepas, NFC |
| NFC optional | ISO/IEC15693 (NFC Type 5), ISO/IEC14443 (NFC Type 2) |
| Battery | Two replaceable AA Batteries, |
| Battery Life | Up to 8 years depending on the Wirepas beacon parameters |
| Reading Range | Up to 75 meters (BLE), 10 cm (NFC), Line of Sight up to 200 meters |
| Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor – Temperature | 0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz |
| LEDs | Two LEDs – Green and Red Color, customizable under request |
| Dimensions | Length 70mm, Width 48.60mm, Thickness 22mm |
| Color | White, Black base |
| Material | TPE, PC with base Industrial adhesive |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP67 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Standard version | Adhesive Beacon with Accelerometer |
| Trax10204 Option-2 | Adhesive Beacon with Accelerometer, NFC (Type 5) |
| Trax10204 Option-3 | Adhesive Beacon with Accelerometer and Temperature |
| Trax10204 Option-4 | Adhesive Beacon, Accelerometer and Temperature, NFC (Type 5) |
| Trax10204 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Asset Tracking
- Logistics
- Predictive Maintenance and
- Inventory Control
