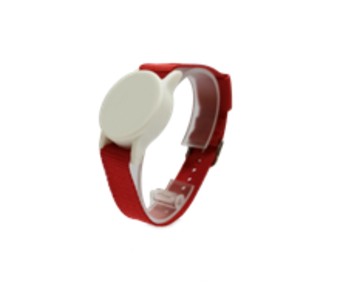

Trax10195- Wearable Wristband BLE Beacon
Trax10195 BLE Wearable Wristband Beacon is compatible with BLE 5.0 standard and it is designed to full fill all requirements for people flow management and secure access control use cases. Due to its optimized and ultra-low power consumption, the beacon guarantees un-surpassed battery lifetimes. Its built-in with high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
Wristband BLE tag is also available with a temperature sensor which enriches the overall functionalities of the tag, all tag configuration parameters can be updated over-the-air through a specific profile service. A secure operational mode is also available and based on an AES-128 crypto algorithm. An optional Buzzer and NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Eddystone (UID, TLM, URL), iBeacon and Alt Beacon protocols, Switch & Buzzer |
| Standards | Compatible with BLE Beacon 5.0 |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2032, 3 Volts Lithium battery |
| Battery Life | Up to 3 years depending on the Beacon configurations |
| Reading Range | Up to 75 meters (BLE), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensors | Accelerometer and optional Temperature with an accuracy of 0.8° C |
| Dimensions | Beacon Width 31mm, Length 41mm x thickness 9.4mm, Strap 255mm |
| Color | Beacon in White/Black, Other colors available at MoQ10K) |
| Material | ABS and Strap Nylon(B3), strap colors (Blue, Black, yellow, Red, Green) |
| Operating Temp | -35°C to +50°C or -27°F to +112°F |
| Storage Temp | -35°C to +50°C or -27°F to +112°F |
| IP Rating | IP65 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Printing optional | Barcode, QR Code, Silkscreen, Offset |
| Standard version | BLE Wristband with Accelerometer |
| Trax10195 Option-2 | BLE Wristband with Accelerometer, NFC (Type 5) |
| Trax10195 Option-3 | BLE Wristband with Accelerometer & Temperature |
| Trax10195 Option-4 | BLE Wristband with Accelerometer & Temperature, NFC (Type 5) |
| Trax10195 Option-5 | BLE – sensor, silk screen printing, ID#, logo, (no more than 3 colors) |
Applications:
- Access control
- Event Management
- Patient Locating
- People Tracking & Locating
- Amusement park access
- Exhibition event attendees
- Fitness and Spa access
- Employee & visitor management
