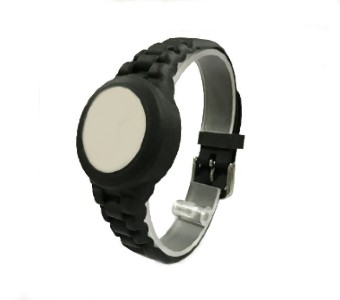

Trax10188-Quuppa Wristband Tag
Trax10188 Quuppa Wristband tag is compatible with Quuppa protocol and eco-system, tag is designed to full fill all requirements for people locating and tracking management and secure access control use cases. Due to its optimized and ultra-low power consumption, the beacon guarantees un-surpassed battery lifetimes. Its built-in with high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
Quuppa tag is also available with a temperature sensor which enriches the overall functionalities of the tag, all tag configuration parameters can be updated over-the-air through back channel commands. An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Quuppa fully compatible |
| Standards | Quuppa protocol |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2032, 3 Volts Lithium battery |
| Battery Life | Up to 3 years depending on the Quuppa parameters |
| Reading Range | Up to 75 meters (BLE), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensors | Accelerometer and optional Temperature sensor with an accuracy of 0.8° C |
| Dimensions / Weight | Tag Diameter 30mm, Strap 255mm x 16mm x 2.4mm |
| Color | White or Black, (Other colors available at MoQ 10K) |
| Material | Strap – Silicon and stainless steel |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP68 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS, Quuppa & Reach |
| Printing optional | Barcode, QR Code, Silkscreen, Offset |
| Standard version | Quuppa Wristband |
| Trax10188 Option-2 | Quuppa Wristband with Accelerometer, NFC (Type 5) |
| Trax10188 Option-3 | Quuppa Wristband with Accelerometer and Temperature |
| Trax10188 Option-4 | Quuppa Wristband with Accelerometer and Temperature, NFC (Type 5) |
| Trax10188 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Access control
- Event Management
- Patient Locating
- People Tracking & Locating
- Amusement park access
- Exhibition event attendees
- Fitness and Spa access
- Employee & visitor management
