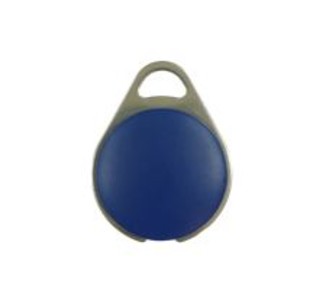

Trax10187- Robust Key Fob BLE Beacon
Trax10187 Key Fob BLE Beacon is compatible with BLE 5.0 standard and it is designed to full fill all requirements for people flow management and secure access control use cases. Due to its optimized and ultra-low power consumption, the beacon guaranties un-surpassed battery lifetimes with, in addition, the possibility to replaceable its CR2016 battery. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application
Description
Beacon tag is also available with a temperature sensor which enriches the overall functionalities of the tag, all tag configuration parameters can be updated over-the-air specific profile service. An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments. A secure operational mode is also available and based on AES-128 crypto algorithm
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Eddystone (UID, TLM, URL), iBeacon and Alt Beacon protocols |
| BLE Standards | BLE Beacon Standard 5.0 |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2016, Up to 2 years depending on the BLE beacon parameters |
| Reading Range | Up to 75 meters (BLE), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensors | Accelerometer and optional Temperature sensor with an accuracy of 0.8° C |
| Optional | Button or 2 LEDs Green & Red |
| Dimensions / Weight | Length 48mm x Diameter 38mmx Thickness 8mm / 15g |
| Color | Grey, Blue |
| Material | ABS housing |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP68 (1m, 24h) |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Standard version | Beacon |
| Trax10187 Option-2 | Beacon with Accelerometer, NFC (Type 5) |
| Trax10187 Option-3 | Beacon with Accelerometer and Temperature |
| Trax10187 Option-4 | Beacon with Accelerometer and Temperature, NFC (Type 5) |
| Trax10187 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications :
- Access control
- Event Management
- People Tracking & Locating
- Amusement park access
- Exhibition event attendees
- Fitness and Spa access
- Employee & visitor management
