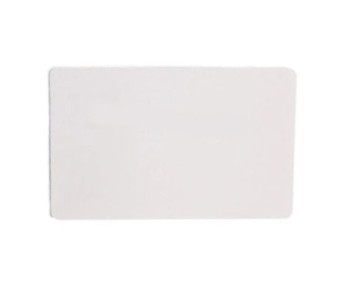

Trax10184- Slim ID Card BLE Beacon
Trax10184 Slim ID card BLE beacon is compatible with BLE 5.0 standard and it is designed to full fill all requirements for people locating and tracking management and secure access control use cases. Due to its optimized and ultra-low power consumption, the beacon guarantees un-surpassed battery lifetimes. Its built-in with high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
ID card Beacon is also available with a temperature sensor which enriches the overall functionalities of the tag, all beacon configuration parameters can be updated over-the-air through a specific profile service. A secure mode is also available and based on an AES-128 crypto algorithm. An optional NFC function can be added in order to provide extra functionalities as registration, access control or micro-payments
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Eddystone (UID, TLM, URL), iBeacon and AltBeacon protocols |
| BLE Standards | BLE Beacon Standard 5.0 |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2016, Up to 2 years depending on the Beacon parameters |
| Reading Range | Up to 75 meters (BLE), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensor Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor Temperature | 0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz |
| Dimensions | Length 85.6mm x Width 54mm x thickness 3.2mm (V+/- 0.15mm) |
| Color | White glossy |
| Material | ABS housing & PVC |
| Operating Temp | -35°C to +50°C or -31°F to +122°F |
| Storage Temp | -35°C to +50°C or -31°F to +122°F |
| IP Rating | IP65 |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Standard version | Beacon |
| Trax10184 Option-2 | Beacon with Accelerometer, NFC (Type 5) |
| Trax10184 Option-3 | Beacon with Accelerometer and Temperature |
| Trax10184 Option-4 | Beacon with Accelerometer and Temperature, NFC (Type 5) |
| Trax10184 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Access control
- Event Management
- People Tracking & Locating
- Patient monitoring
- Employee & visitor management
