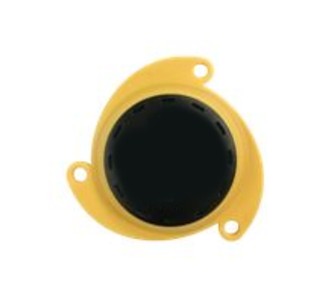

Trax10182- Asset IP68 Quuppa Tag
Trax10182 Asset IP68 Quuppa tag is fully compatible with Quuppa protocol and eco-system. The tag is designed to full fill all requirements for asset tracking, logistics, item management or predictive maintenance use cases. The battery used is CR2032 battery and can be replaced. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. All tag configuration parameters can be updated over-the-air through the back-channel commands.
Description
Asset Quuppa tag is also available with a temperature sensor which enriches the overall functionalities of the tag, enabling capabilities for cold chain monitoring. A NFC function to provide extra information on the asset (Manual, Last date of maintenance, Location) and/or easy pairing function. The tag can be fastened, laser engraved, silkscreen, offset printed including a number print or QR code on the inner PVC disc.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Quuppa Full Compatible, optional Temperature, NFC (Type 2 or 5) |
| Standards | Quuppa Ready protocol |
| NFC | ISO/IEC15693 (NFC Tag Type 5), ISO/IEC14443 (NFC Tag Type 2) |
| Battery | CR2032, Up to 3 years depending on the Quuppa parameters |
| Reading Range | Up to 75 meters (Quuppa), Up to 10 cm (NFC), Line of Sight up to 200 meters |
| Sensor – Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor – Temperature | 0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz |
| Dimensions | Diameter – 54 mm – Thickness – 11 mm |
| Color | Outer ring white, Center is black (Option: Transparent PC top cover) |
| Material | TPE, PC with base Industrial adhesive |
| Operating Temp | -30°C to +60°C or -22°F to +140°F |
| Storage Temp | -30°C to +60°C or -22°F to +140°F |
| IP Rating | IP68 |
| Environmental | Saltwater, salt mist, acetic acid water, carbonated sodium water, |
| Chemical properties | Sugared water, ethylene glycol, humidity 95% (50°C, 24h) |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS, Quuppa & Reach |
| Standard version | Quuppa tag |
| Trax10182 Option-2 | Quuppa tag with Accelerometer, NFC (Type 5) |
| Trax10182 Option-3 | Quuppa tag with Accelerometer and Temperature |
| Trax10182 Option-4 | Quuppa tag with Accelerometer and Temperature, NFC (Type 5) |
| Trax10182 Option-5 | Custom – sensor, offset printing, ID#, logo, laser engraving, QR code |
Applications:
- Asset Tracking
- Logistics
- Predictive Maintenance
- Equipment & Vehicle monitoring
- Inventory Control
