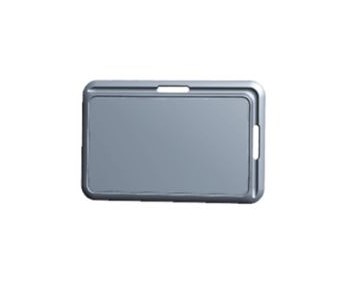

Trax10180- ID Badge BLE Beacon
Trax10180 ID Badge BLE beacon compatible with BLE 5.0 standard and it is designed to full fill all requirements for people tracking and location management and secure access control use cases. Its high precision accelerometer sensor permits to detect any movements, vibrations, shocks or a specific fall. The accelerometer parameters are configurable in order to adjust them to the final needs of the application.
Description
An optional temperature sensor enriches the overall functionalities of the beacon allowing precision monitoring. All beacon configuration parameters can be updated over-the-air through a specific profile service. A secure operational mode is also available and based on an AES-128 crypto algorithm. An optional NFC function can be added in order to provide extra to provide extra functionalities as registration, access control or micro-payments.
| Item | Aspect |
| Operating Frequency | BLE 2.45 GHz and optional (NFC)13.56 MHz |
| Technology | Eddystone (UID, TLM, URL), iBeacon and AltBeacon protocols supported |
| NFC optional | ISO/IEC15693 (NFC Type 5), ISO/IEC14443 (NFC Type 2) |
| Battery | CR2016 |
| Battery Life | Up to 2 years depending on beacon parameters |
| Reading Range | Up to 75 meters (BLE), 10 cm (NFC), Line of Sight up to 200 meters |
| Accelerometer | User-selectable full scales of ±2g/±4g/±8g/±16g |
| Sensor – Temperature | 0.8 °C (typ. accuracy) with ODRs ranging from 50 to 1.6 Hz |
| Dimensions | Length 85.60mm x Width 54.00 mm x Thickness 5.00mm |
| Color | Grey, White |
| Material | ABS housing & PVC |
| Operating Temp | -35°C to +50°C or -31°F to +122°F |
| Storage Temp | -35°C to +50°C or -31°F to +122°F |
| IP Rating | IP68 |
| Optional | NFC, Sensors Accelerometer and Temperature |
| Certificates | BLE, CE, FCC, ISED, RoHS & Reach |
| Standard version | Beacon |
| Trax10180 Option-2 | Beacon with Accelerometer, NFC (Type 5) |
| Trax10180 Option-3 | Beacon with Accelerometer and Temperature |
| Trax10180 Option-4 | Beacon, Accelerometer and Temperature, NFC (Type 5) |
| Trax10180 Option-5 | Custom – sensor, offset printing, ID#, logo, |
Applications:
- Access control
- Event Management
- People Tracking & Locating
- Patient monitoring
- Employee & visitor management
