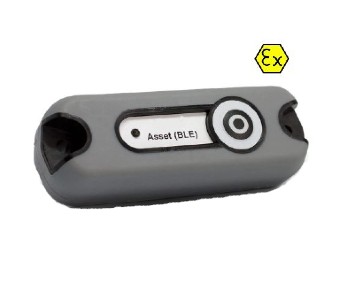

Trax10175-Rugged Industrial Beacon
Trax10175 Beacon is robust and durable Low Energy beacons equipped with a temperature sensor, accelerometer and hall effect sensor for asset tracking. The BLE beacon can easily be configured and has in-built Near Field Communication (NFC). The ultra rugged construction of the device makes it suitable for a huge range of IoT and Industrial asset or equipment tracking applications.
Description
- Rugged BLE Low Energy Device with NFC
- Sensors included, temperature & accelerometer
- Long battery life up to 5 years in typical settings
- High read concurrency
- Rugged form factor, construction is over-molded durable, shock resistant TP
| Item | Aspect |
| Radio Protocol | BLE Beacon standard 4.2, +8dBm to –15dBm |
| NFC (Beacon configured via NFC) | |
| Supported Profiles | iBeacon, Eddystone UUID, Generic |
| Battery Type | Sealed prismatic battery, non-replaceable |
| Battery Capacity | 1.5 Ah |
| Battery Life | 5 years, 5% motion, 10 second beacon rate |
| Read Range | 200 m+ depending on reading device |
| Default Beacon Rate | Configurable from 1–10 seconds |
| Alarm Beacon Rate | Configurable from 0–10 seconds, (where 0 is off) |
| Sensors | Accelerometer, Temperature |
| Temperature Sensor Range | –20°C to +60°C with an accuracy of ± 2°C |
| Visual Indicator | LED |
| Operating Temperature | –20°C to +60°C |
| IP Rating | IP68 |
| Shock & Vibration | MIL-STD-810 F |
| Construction | Over molded durable, shock resistant, TPE (Thermoplastic elastomer) |
| Size | 95.1 × 34.2 × 21(mm) or 3.74 × 1.35 × 0.83 (Inches) |
| Weight | 59g |
| Configurable Parameters | High or Low Temperature and Alarm Beacon Rate |
| Configurable | Accelerometer Threshold |
| Certifications | CE, FCC, RoHS |
ATEX Certified (Optional) Beacon:
Ex, EX 1A 11C T4 GA, EX IA 111C T200
135 C Da, EX 11 1 GD, EX ia 1 MA, EX 1M1, Tamb -20C to +55C, Cl I, II, III
Div 1 Groups A-G, T4, EX ia, Cl I Zone 0, AEx ia IIC T4 Ga, Ex classifications
Zone 20 AEx ia IIIC T135C Da, Ex ia 11C T4 Ga, Ex ia IIIC T135C Da
Applications:
- Asset Management in Industrial applications
- Container management
- Construction and mining
- Cold Chain condition monitoring
- Manufacturing & Warehouse Management
- Healthcare Equipment monitoring
