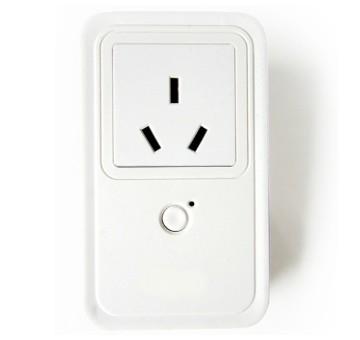

Trax10170-LoRaWAN Power Consumption Sensor
Trax10170 LoRaWAN power consumption sensor is a wireless power plug converter for indoor use, it can remotely control the output switch and detect the output power. It integrates LoRa/FSK modulation communication wireless module SX1276, Sensor has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless manage switch control. LoRaWAN™ Class C compatible device.
Description
Trax10170 has a wireless range of up to 10km*, uses frequency hopping spread spectrum (FHSS), data messages are secure with Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC. Sensor features OTA updates and has improved interference immunity.
| Item | Aspect |
| Electric: | |
| Rated Working Power Supply | 100-240VAC, 50/60Hz |
| Typical Operating Current | 15mA/220VAC/1W |
| Typical Load Characteristics | Resistive Load: 16A/250VAC; P: 4000VA |
| Inductive Load: 8A/220VAC; P: 1760VA (COSφ=0.4) | |
| Motor Load: 1.5HP/240VAC | |
| White Lamp, Fluorescent Lamp, Gold Halogen Lamp: 3000W/220VAC | |
| Relay Switch Life Times | 100,000 Times |
| Current Measurement Accuracy Range | 100mA~16A |
| Energy Measurement Error | <+-1% |
| Frequency: | |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa, Spreading Factor=12, Bit Rate=293bps ) |
| -121dBm (FSK, Frequency Deviation=5kHz, Bit Rate=1.2kbps) | |
| Antenna Type | Build-In Antenna |
| Communication Range | 10 Km *(transmission distance depends on the environment) |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | US915, AU915, AS923, EU868, KR920, CN470 (Configured before shipment) |
| Physical: | |
| Dimension | 95mm*58mm*42.5mm (Without Plug Part) |
| Environment Temperature Range | -20℃ ～ 50℃ |
| Environment Humidity Range | <90% RH (No Condensation) |
| Storage Temperature | -40℃ ～ 85℃ |
