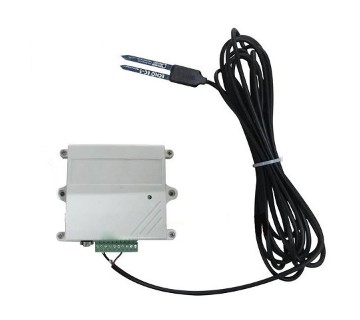

Trax10169-LoRaWAN Soil Moisture Sensor
Trax10169 LoRaWAN soil moisture sensor can be used to detect the amount of water in the soil, transmit data on a wireless network and sensor is fully compatible with LoRaWAN protocol.
Description
| Item | Aspect |
| Electric: | |
| Power Supply | Adapter DC Powered（12V/1A） |
| Working Power（Max） | 70mA(Detect)，110mA(Transmit) |
| Sensor Resolution | 0.1% Vwc In Mineral Soil, 0.25% Vwc In Growth Medium |
| Sensor Accuracy | +-3% |
| Sensor Detect Range | 0-100%VWC |
| Frequency: | |
| Frequency Range | 863MHz-928MHz 470MHz-510MHz |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -121dBm (Frequency Deviation=5kHz,Bit Rate=1.2kb/S) |
| Build-In Antenna | Build-In Antenna |
| Communication Range | 4km（Typical Output Power） |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK/OOK |
| Support LoRaWAN Band | EU863-870，US902-928，AU915-928，KR920-923，AS923 |
| Physical: | |
| Dimension | 111mm*86mm*42mm |
| Working Temp | -20°C ～ +55°C |
| Storage Temp | -40°C ～ +85°C |
| Humidity Detecting Range | ＜90%RH |
