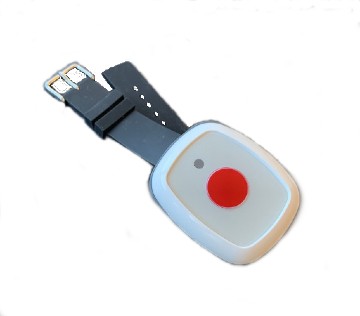

Trax10162-Wirepas Wrist Tag
Trax10162 – Wirepas Wrist tag is a wearable battery powered with full support of Wirepas software features, Bluetooth beacon is based on nRF52832 chipset and optimized antenna. It features waterproof design with rugged enclosure, strap is silicone material, built-in alarm button, LED, vibration/buzzer and temperature sensor. Powered by one replaceable CR2477 battery. Designed for people tracking, industrial safety applications.
Description
- Advertising channels supports BLE or Wirepas MESH
- Wearable options – default base unit, clip, lanyard, silicone wrist strap
- Supports Bluetooth 4.2, Low Energy (Bluetooth5-ready)
- Enclosure design, ASA plastic, white, IP65 protection
| Item | Aspect |
| Operating modes | Non-router mode – Mobile tag (periodic transmission of identifier and location) |
| Configuration options diagnostics | Wirepas Network Tool application |
| TX power | -40, -20 to 4 dBm (with 4dB steps) |
| Advertising interval | 15secs to 18 hours |
| Radio | Bluetooth 4.2, Low Energy (Bluetooth5-ready) |
| Frequency | 2.402 to 2.480 GHz |
| Radio Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna | Printed meandered planar F-antenna |
| Battery, Replaceable | Replaceable, 1x CR2477 (1000 mAh typ. capacity at 25°C), Yes |
| Battery expected life | 2 years at 10 minutes interval, |
| 10 years at 18 hours interval (24/7 at ambient temperature) | |
| Operating temperature | -20°C to +60°C |
| Sensors (optional) | 3-axis linear accelerometer; temperature(optional) |
| User interface | button, 2 LEDs, buzzer, vibration motor |
| Enclosure material | ASA Plastic |
| Colour | White |
| Size | 55 x 46 x 17 mm |
| Protection | IP65 |
