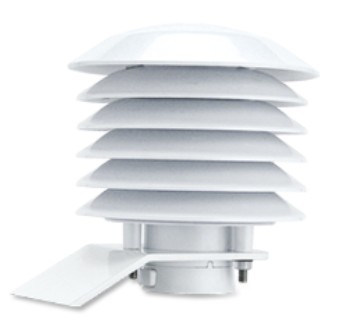

Trax10152-Outdoor Temperature & Humidity Sensor
Trax10152 is a long-range wireless temperature and humidity device based on the LoRaWAN open protocol (Class A). The sensor built with a waterproof housing. It collects data over LoRa network and sends it to central cloud-based applications for further reporting and trigger alerts. Fully compatible with LoRaWAN protocol.
Description
| ITEM | ASPECT |
Frequency: | |
| TX Power | 19dBm±1dBm |
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps) -121dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Up to 10 km, the actual transmission distance depends on the environment. |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510, Configured before shipment |
| Wireless range up to 10 km (*1) | LoRaWAN Class A compatible |
| Frequency Hopping Spread Spectrum (FHSS) | Improved interference immunity |
| Improved power management for longer battery life | Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages) |
Electric: | |
| Input Power | 2 X 1.5V AA Batteries |
| Operating Power | DC 2.4V～3V |
| Standby Current | 12uA/3V |
| Transmitting Current (Max) | 120mA/3V |
| Receiving Current (Max) | 11mA/3V |
Physical: | |
| Dimension | L:222mm*W:130mm*H:195mm |
| Working Temp | -10°C － 50°C |
| Storage Temp | -40°C － 85°C |
| Temperature Detecting Range | -10℃～50℃ |
| Temperature Accuracy | ±0.5℃ @25℃ |
• Outdoor Temperature and humidity monitoring
• Summer/winter property monitoring
• Greenhouse temperature and humidity monitoring
• Environment monitoring
Online software (Cloud app) wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
