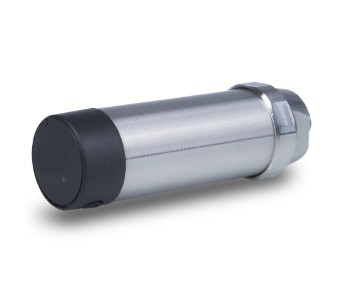

Trax10150-Industrial Sensor Beacon
Industrial sensor is designed to capture abnormal vibrations or high temperatures give early signs of machine failure due to component imbalance, misalignment, wear or improper use of equipment. Those can be now effortlessly identified without manual measurements or expensive wired equipment to increase machine uptime and extend mean time between failures. Industrial sensor is a wireless battery-operated condition monitoring device that measures tri-axial vibration and surface temperature of rotating equipment, such as pumps, motors and compressors.
Description
From mesh to any cloud platform Industrial sensor operates in a wireless mesh network for easy, cost efficient deployment and continuous monitoring of tens or hundreds of machines. Nodes send data directly or via other nodes to Gateways that connect the mesh to any cloud platform over wired or wireless network. Industrial sensor can measure acceleration and temperature on configurable intervals or on request. Sensor can send raw acceleration data for post-processing in the cloud or it can perform mathematical calculations already on the edge and provide per axis RMS, Kurtosis and FFT (1Hz/bin).
| Vibration | Wireless communication | Environment |
| Acceleration measurement on 3-axis Axial, Horizontal and Radial | 2.4GHz / Wirepas Mesh Battery | Operating -40°C to +85 °C |
| Frequency range 10-1000Hz | 3.6V lithium thionyl chloride | Storage 30 °C maximum |
| Dynamic range +/- 4G (configurable to 2, 4, 8 or 16) | Battery lifetime est. 3 years (Battery life is dependent on operating temperature and configuration) | IP68 (dust-tight and resistant to water up to 1m) |
| Sampling rate 6600Hz | Dimensions | Designed for ATEX* |
| Resolution 16-bit | 78.5 x 28 mm | ATEX II 2 G Ex ib IIC T4 Zone 1 & 2 |
| FFT resolution 1Hz/bin | Mounting to M8 thread | -40°C ≤ Ta ≤ +60°C |
| Temperature | Weight 129g | Software |
| Measurement range -40°C to +85 °C | Cover material 316 ss | Customer cloud application |
| Accuracy +/- 2°C (mounting dependent) | Top cap material PE HD | Device management |
| Repeatability +/- 0.1°C | Fully configurable data delivery and integration to major clouds | |
| Resolution 0.1°C |
* (ATEX) Processing for certification
