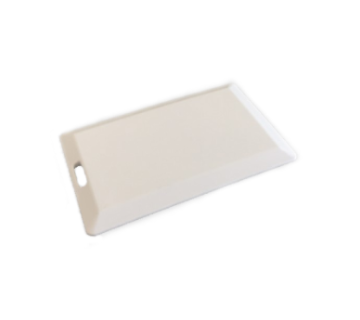

Trax10146- Wirepas Beacon ID Card
- Trax10146-Wirepas Beacon ID card, wearable for indoor tracking with full support of Wirepas Mesh features
- Based on nRF52832 (MCU and transceiver)
- Includes accelerometer ideal for people tracking solutions
- Antenna printed meandered planar F antenna
- Configurable to enter into low-power mode for battery savings
- Waterproof card, IP67 rated
- Powered by thin Non-replaceable lithium battery that guarantees a long operating life
Description
- Advertising channels BLE or Wirepas proprietary
- Configuration and diagnostics, Wirepas Network Tool application
- Supports Bluetooth 4.2, Low Energy (Bluetooth5-ready)
- Enclosure with ABS plastic, protection IP67, optional card printing available
| Item | Aspect |
| Operating modes | Non-router mode – Mobile tag (periodic transmission of identifier and location) |
| Configuration and diagnostics | Wirepas Network Tool application |
| TX power | 40, -20 to 4 dBm (with 4dB steps) |
| Advertising interval | 15secs to 18 hours |
| Radio | Bluetooth 4.2, Low Energy (Bluetooth5-ready) |
| Frequency | 2.402 to 2.480 GHz |
| Radio Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna, pattern | Printed meandered planar F-antenna, Omni directional |
| Antenna gain | 2dB (average) |
| Battery replaceable | No |
| Battery | CP224147 (800 mAh typ. capacity at 25°C) |
| Battery expected life | 2 years at 10 minutes interval, 10 years at 18 hours interval (24/7 at ambient temperature) |
| Operating temperature | 20°C to +60°C |
| Sensor | 3-axis linear accelerometer, button configurable, LEDs 2 ( Green & Orange) |
| Enclosure material | ABS plastic |
| Colour | White, optional logo printing available |
| Size | 85 x 56 x 4.4 mm |
| Protection | IP67 |
| Certifications | CE (EU), FCC (US) |
