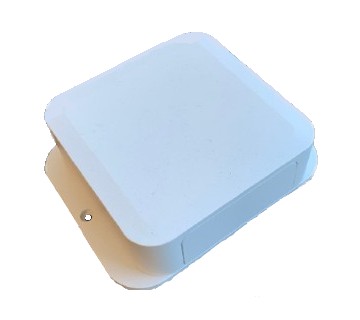

Trax10145- Wirepas Beacon Indoor Asset
- Trax10145-Wirepas Beacon designed for indoor tracking with full support of Wirepas Mesh features
- Based on nRF52832 (MCU and transceiver)
- Built with two switchable antennas (circularly-polarized directive and omni directional antenna optimized antenna
- Includes Temperature sensor, LED and accelerometer for motion detection (*Sensor version)
- Designed with two power options (4x AA alkaline batteries (standard version) and external USB power supply (*Sensor version)
Description
- Advertising channels BLE or Wirepas proprietary
- Configuration and diagnostics, Wirepas Network Tool application
- Supports Bluetooth 4.2, Low Energy (Bluetooth5-ready)
- Enclosure with ABS material and protection IP40
| Item | Aspect |
| Operating modes | Router mode (anchor tag): mesh network node |
| Configuration and diagnostics | Wirepas Network Tool application |
| TX power | 40, -20 to 4 dBm (with 4dB steps) |
| Advertising interval | 15secs to 18 hours |
| Radio | Bluetooth 4.2, Low Energy (Bluetooth5-ready) |
| Frequency | 2.402 to 2.480 GHz |
| Radio Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna | 2 switchable (printed circularly-polarized directive antenna, meandered planar F-antenna) |
| Battery, Replaceable | 4xAA LR6 alkaline (5600 mAh typ. capacity at 25°C), Yes |
| Battery expected life | 6 years at 10 minutes interval, 20 years at 18 hours interval (24/7 at ambient temperature) |
| Operating temperature | 20°C to +60°C |
| Sensors | 3-axis linear accelerometer, temperature/humidity sensor, button Led: 1 (red) [only for *Sensor version] |
| Power Options (Two options) | Battery (Standard version) or Battery & USB (*Sensor version) |
| Power USB (*Sensor version) | Micro USB connector 5VDC |
| Enclosure material | ABS |
| Colour | White |
| Size | 100 x 100 x 35 mm (excluding flange), 124 x 100 x 35 mm (including flange) |
| Protection | IP40 |
