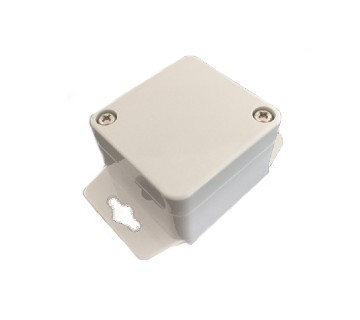

Trax10144-Wirepas Asset Beacon
- Trax10144-Wirepas Asset Beacon designed for indoor and outdoor tracking with full support of Wirepas Mesh features
- Based on nRF52832 chipset and optimized antenna
- Built-in accelerometer for motion detection
- Powered by one replaceable CR123A lithium battery, with extended operating temperature range
- LED with transparent top lid (Optional), easy identification to have pick to light applications
Description
- Advertising channels BLE or Wirepas proprietary
- Enclosures options, with or without flanges or IP67 versions
- Supports Bluetooth 4.2, Low Energy (Bluetooth5-ready)
- Rugged design, IP65/NEMA4 (IP67/NEMA6 available on demand)
| Item | Aspect |
| Operating modes | Non-router mode (mobile tag), periodic transmission of identifier for (positioning), Router mode (anchor tag): mesh network node |
| Configuration and diagnostics | Wirepas Network Tool application |
| TX power | 40, -20 to 4 dBm (with 4dB steps) |
| Advertising interval | 15secs to 18 hours |
| Radio | Bluetooth 4.2, Low Energy (Bluetooth5-ready) |
| Frequency | 2.402 to 2.480 GHz |
| Radio Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna | Printed meandered planar F-antenna |
| Battery | Replaceable, CR123A (1500 mAh typ. capacity at 25°C) |
| Battery expected life | 4 years at 10 minutes interval, 15 years at 18 hours interval (24/7 at ambient temperature) |
| Operating temperature | -30°C to +75°C |
| Sensors | 3-axis linear accelerometer; optional sensor board (temperature, light, …) |
| Led (Optional) | 1 (red), controllable via GATT (available with transparent lid option) |
| Enclosure material | Polycarbonate |
| Colour | Light grey (RAL 7035) |
| Size | 52 x 50 x 35 mm (version w/o flange), 52 x 80 x 35 mm (version w/ flanges) |
| Protection | IP65/NEMA4 (IP67/NEMA6 available on demand) |
