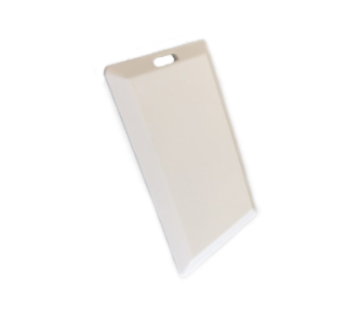

Trax10142-QUUPPA Card
- Trax10142-QUUPPA Card with full support of Quuppa software features
- Ultra slim form factor Beacon can be used as an identification badge for personnel or attached equipment
- Beacon uses internal accelerometer for tracking, a button and two leds (managed via GATT) allows for a richer user interface
- Waterproof and powered by thin non-replaceable lithium battery that guarantees long operating life
- Firmware based on Quuppa libraries (Quuppa Compatible)
Description
- Advertising channels BLE or Quuppa proprietary
- nRF52832 SoC and optimized antenna, for best on the market RF and energy performance
- Integration with NFC available as an option
- Supports back-channel communication, proprietary channels, OTA FW upgrade
| Item | Aspect |
| Quuppa ID | MAC address or custom ID |
| Configuration options | Configurable with Quuppa Site Planner |
| TX power | -40, -20 to 4 dBm (with 4dB steps) |
| Advertising channels | BLE or Quuppa proprietary |
| Advertising interval | 0.1 to 10 secs (BLE channel); 0.01 to 10 secs (Quuppa proprietary channel) |
| Radio Version | 4.0 Bluetooth Smart (Bluetooth Low Energy) |
| Frequency | 2.402 to 2.480 GHz (BLE) |
| Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna | Printed meandered planar F-antenna |
| Antenna gain | 2dB (average) |
| Antenna pattern | omnidirectional |
| Accelerometer | 3-axis linear accelerometer |
| Battery | Thin non-replaceable lithium battery, CP224147 (800 mAh typ. capacity at 25°C) |
| Expected life | 2 month (100Hz) to 10 years (0.1Hz), 24/7 at ambient temperature |
| Operating temperature | -20°C to +60°C (battery operating life sharply decreases under 0°C) |
| Sensors and Interfaces | 2- axis linear accelerometer, user configurable button, leds ( Green, Orange) |
| Material | ABS plastic |
| Colour | white (Option -logo silk-screen printing available) |
| Size | 85 x 56 x 4.4 mm |
| Protection | IP67 |
| Certifications | CE (EU), FCC (US) |
