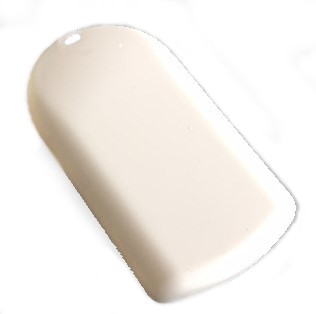

Trax10141-QUUPPA Key Fob
- Trax10141-QUUPPA Key Fob fully compatible with QUUPPA software features
- Beacon can be used as an identification badge for personnel or assets.
- Beacon uses internal accelerometer for tracking
- Configurable to automatically enter into low-power mode for battery savings.
- Advertising channels BLE or Quuppa proprietary
- nRF52832 SoC and optimized antenna, for best on the market RF and energy performance
Description
- Firmware based on Quuppa libraries (Quuppa Compatible)
- Supports back-channel communication, proprietary channels, OTA FW upgrade
- Configuration options available with Quuppa Site Planner
- Advertising channels BLE or Quuppa proprietary
- Advertising interval: 0.1 to 10 secs (BLE channel); 0.01 to 10 secs (Quuppa proprietary channel)
- Uses replaceable 2 x CR2032 batteries
| Item | Aspect |
| Quuppa ID | MAC address or custom ID |
| Configuration options | Configurable with Quuppa Site Planner |
| TX power | -40, -20 to 4 dBm (with 4dB steps) |
| Advertising channels | BLE or Quuppa proprietary |
| Advertising interval | 0.1 to 10 secs (BLE channel); 0.01 to 10 secs (Quuppa proprietary channel) |
| Radio Version | 4.0 Bluetooth Smart (Bluetooth Low Energy) |
| Frequency | 2.402 to 2.480 GHz (BLE) |
| Module | Nordic SoC nRF52832 (MCU and transceiver) |
| Antenna | Printed meandered planar F-antenna |
| Antenna gain | 2dB (average) |
| Antenna pattern | omnidirectional |
| Accelerometer | 3-axis linear accelerometer |
| Battery | 2x Panasonic CR2032 (450 mAh typ. capacity at 25°C) |
| Expected life | 1 month (100Hz) to 4 years (0.1Hz), 24/7 at ambient temperature |
| Operating temperature | -20°C to +60°C (battery operating life sharply decreases under 0°C) |
| Material | ABS plastic |
| Colour | white (Option -logo silk-screen printing available) |
| Size | 65 x 35 x 11 mm |
| Protection | IP40 |
| Certifications | CE (EU), FCC (US) |
