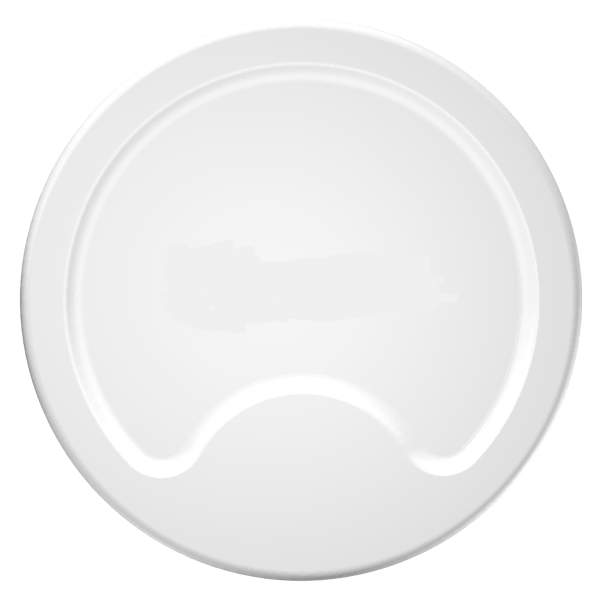

Trax10134-Disc Beacon

  • The Trax10134-Disc is a Low Energy BLE beacon based on Nordic Semiconductors
  • nrf51822 chip set that uses a CR2477 coin cell battery.
  • Compatible with iBeacon™ and Eddystone™ (UID, URL, TLM, EID) at the same time.
  • Cost efficient and reliable, the main keys for your beacon deployments.
  • From 30 to 46 months of battery lifetime (CR2477) advertising once per second.
  • All the parameters of this product can be modified
SKU: Trax10134-Disc Beacon Categories: ,

Description

  • Designed to work on any surface with double-sided tape
  • This model is 100% compatible with our Eddystone™ + iBeacon™ firmware updates
  • Modules available in stock and capable of delivering in large quantities
  • Easily removable enclosure
ItemAspect
Size (HxWxL)11,3 x Ø52,6 mm
Battery capacity (mAh)1000
Battery lifetime *without self discharge factor30-40 months (depending on the Tx power at 1s interval) 3-4 months (depending on the Tx power at 100ms interval)
WaterproofNO
Attachment methodDouble sided sticker
Operating temperature-30 ºC to +60 ºC
ProtocolsiBeacon Eddystone: UID, URL, TLM and EID
Firmware update over the air
Eddystone Configuration GATT Service
Other featuresFastest battery replacement
Optional weatherproof kit
100% Customizable
