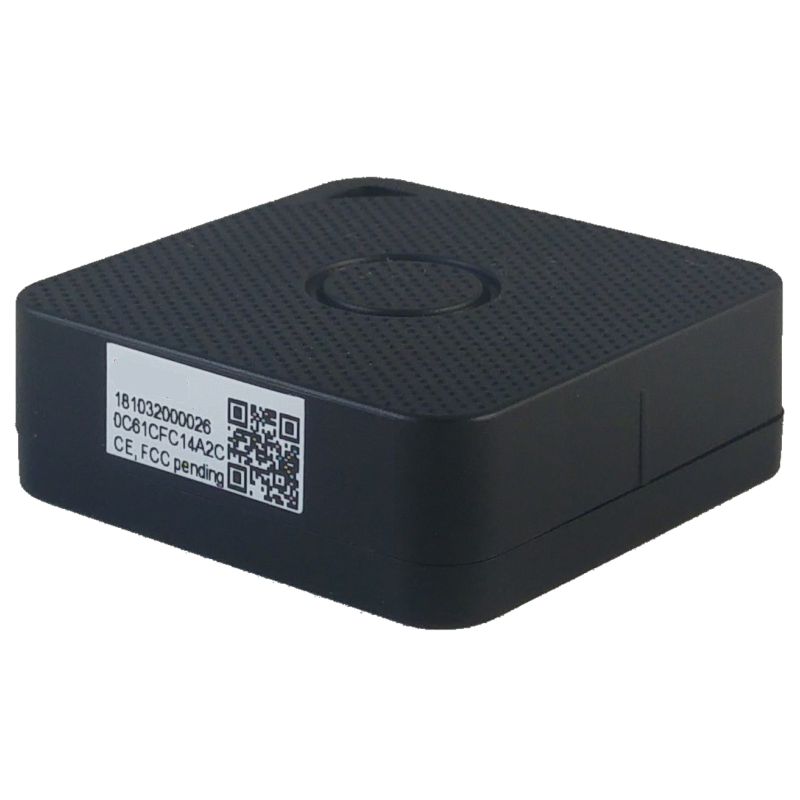

Trax10131TA-Temp/Accelerometer Sensor
- Trax10131TA-Temp/Accelerometer Sensor, available with different sensor options.
- Temperature sensor for environment monitoring, Hall sensor with magnet to detect open/close event and Accelerometer for motion detection or activity monitoring
- The BLE is a very low power 2.4G radio that can transmit the beacon information efficiently. ARM Cortex TM-M3 32-bit processor
- Long battery life: close to 7 year in typical beacon setting
- Support BLE Beacon standard 4.2., Android APP for configuration
Description
- Beacon with Infrared (IR) proximity sensor for short range detection below 50cm.
- IP67 waterproof, 2M of drop protection
- User configurable from 100ms~1 min. Default: 5 s Sensor updated at 0.5X
- Powered with 1XCR2450 battery
| Item | Aspect |
| Supply Power | Max. +5.5 Volt |
| VDD | +3V by CR2450 battery |
| Frequency band | 2.4GHz |
| Frequency Deviation | +-350 kHz @1Mbps |
| Receiver sensitivity | -96 dBm @250kbps, 0.1% BER |
| Size | 43mmx43mmx14.8mm |
| Maximum transmit power | +2dBm |
| Operating Temperature | -20°C to 60°C (-30°C~70°C in verifying) |
| Storage Temperature | -40º to 85º Celsius |
| Certificate | CE/FCC/TELEC (pending |
| Battery Life Simulation | 3.5 yr.*, in default transmit period and 120 times/day of detected event |
| Range | Up to 50M range in open space(planned) |
| Antenna | On board chip antenna |
| Acceleration range | +-2G, +-4G(default), +-8G, +-16G |
| Sensitivity | +-2G: 4mg/digit +-4G: 8mg/digit +-8G: 16mg/digit +-16G: 32mg/digit |
| Offset Accuracy | +-40mg |
| Response time | Typ.: TBC |
| Long term stability | Typ.: <=0.01 oC/yr |
| Weight | 24g |
* Calculated with one CR2450 battery with 600mAH capacity. Considering the battery discharge characteristic, only 80% of capacity is used for calculation. This value is just for reference and may be varied with component tolerance and different environment
