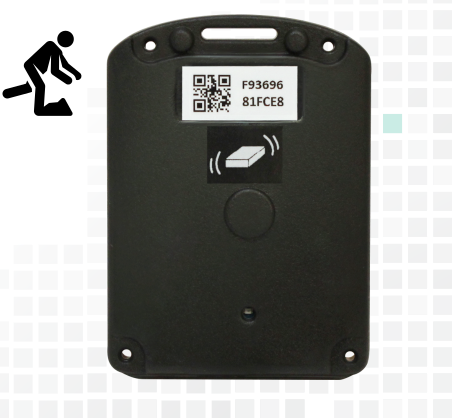

Trax10128V-Vibration/Motion Sensor
- Trax10128V-Vibration/Motion Sensor is a Beacon with accelerometer for motion event detection, including the fall detection.
- The BLE is a very low power 2.4G radio that can transmit the beacon information efficiently.
- The typical beacon battery life is 2.8year in default settings.
- Links to Cloud with Beacon Gateway.
- Various sensors technology for complex application such as location tracking; building automation, health and wellness monitoring, activity monitoring, access management
Description
- Beacon with accelerometer for motion event detection, including the fall detection.
- Sensor status change(still->motion, motion ->still, or falling) will trigger a series of transmit to inform the status change.
- User configurable from 100ms~10 s Default: 10 s
| Item | Aspect |
| Supply Power | Max. +5.5 Volt |
| Voltage Ripple | +-2% |
| Humidity | Max 95%, Non condensing, relative humidity |
| VDD | +5 Volt +- 5% by USB power or +3V by CR2032 battery |
| Frequency band | 2.4GHz |
| Receiver sensitivity | -96 dBm @250kbps, 0.1% BER |
| Size | 58mmx42mmx10mm |
| Maximum transmit power | +4dB |
| Operating Temperature | -20’C to 60’C |
| Storage Temperature | -40º to 85º Celsius |
| Certificate | CE/FCC/TELEC/NCC |
| Battery Life Simulation | 2.5 yr*, in default transmit period |
| Acceleration range | +-2G, +-4G(default), +-8G, +-16G |
| Sensitivity | +-2G: 4mg/digit +-4G: 8mg/digit +-8G: 16mg/digit +-16G: 32mg/digit |
| Offset Accuracy | +-40mg |
| Current Consumption | Average: 14.35uA*, in default transmit period |
* Calculated with 2 X CR2032 with 220mAH capacity. Considering the battery discharge characteristic, only 70% of capacity is used for calculation. This value is just for reference and may be varied with component tolerance and different environment.
