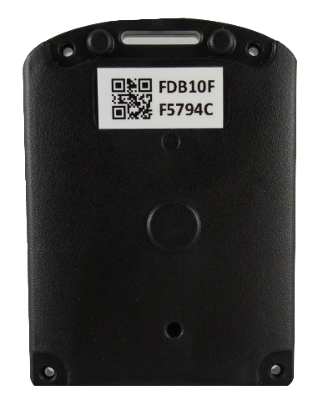

Trax10125-Asset
- Trax10125-Asset Beacon features with different sensor options for asset tracking and various IoT applications
- Low power 2.4GHz radio that can transmit the beacon information efficiently
- Typical beacon battery life up to 2.8years in default settings
- Links to Cloud with Beacon Gateway
- Applications such as location tracking, building automation, health and wellness monitoring and activity monitoring
Description
- ARM Cortex TM-M0 32-bit processor
- On board PCB antenna
- 30M range in open space
- Humidity/Temperature sensor for environment monitoring
- Powered with 2XCR2032 battery or external USB
- Long battery life: 2.5 year in typical beacon setting
- Android APP for configuration
- Panic/alarm button
- Power on/off switch
- Sensor activity wake up mechanism to save power
| Item | Aspect |
| Supply Power | Max. +5.5 Volt |
| Voltage Ripple | +-2% |
| Humidity | Max 95%, Non condensing, relative humidity |
| VDD | +5 Volt +- 5% by USB power or +3V by CR2032 battery |
| Frequency band | 2.4GHz |
| Receiver sensitivity | -96 dBm @250kbps, 0.1% BER |
| Size | 58mmx42mmx10mm |
| Maximum transmit power | +4dB |
| Operating Temperature | -20’C to 60’C |
| Storage Temperature | -40º to 85º Celsius |
| Certificate | CE/FCC/TELEC/NCC |
