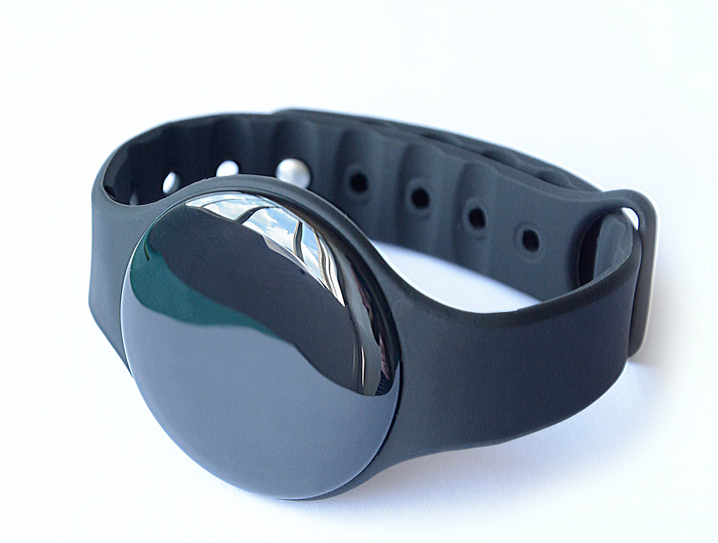

Trax10123-Wristband
- The Trax10123-Wristband is a portable iBeacon tag with ultra low power
- Chipset NORDIC® nRF52 series and Low Energy (BLE) Beacon 4.0 technology
- It’s a bracelet shape, waterproof structure, robust firmware
- Designed for commercial advertising and indoor location-based service
- Broadcasts 2.4GHz radio signals at regular and adjustable intervals
- Can be heard and interpreted by iOS and Android BLE-enabled devices
Description
- Programmed standard iBeacon firmware
- Portable with external ON/OFF push button
- Ultra-low power consumption chip set nRF52 series with ARM® core
- Easy to print a customization Logo/branding on the case or the button
| Item | Aspect | Comments |
| Case Color | Black | Other colors can be customized |
| Main material | PC (Shell) Silicone（Wristband&Key chain） | |
| Battery Model | CR2032 | Coin battery, 1pc, 240mAh |
| Operation Voltage | 1.8-3.6V | DC |
| Waterproof level | IP65 | |
| Average Current | 19.4uA | Tested at -4dBm transmission power and 1000ms Advertising Interval. |
| Transmission Range | Up to 90m(+4dBm) | Depending on the environment where the Trax10123-Writband is placed these values might differ. |
| Antenna | 50ohm | On board/PCB Antenna |
| Size | Dia 38mm x Thickness 6.3mm | Strap not included |
| Net Weight | 20.4g | With battery, keychain and strap |
| Operating Temperature | -25 to +60ºC | |
| Storage Temperature | 20 to +30ºC |
