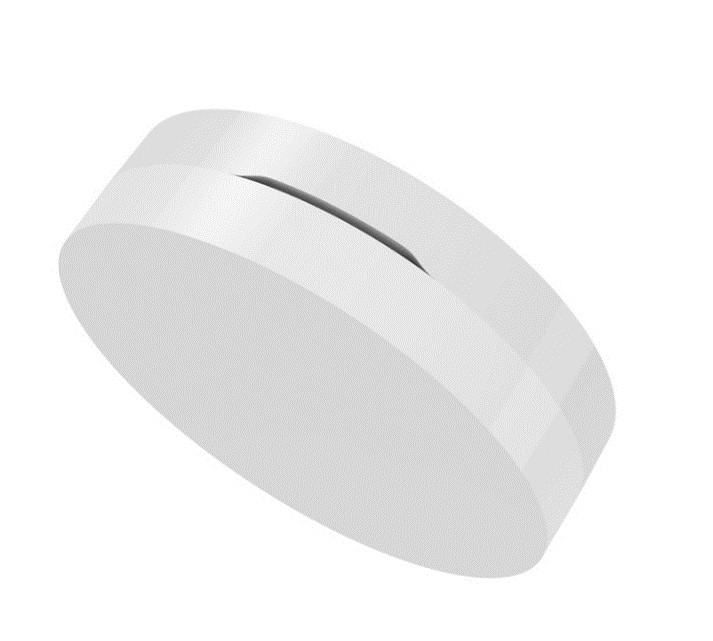

Trax10122-Mini
- The Trax10122-Mini is a portable iBeacon tag with ultra low power
- Chipset NORDIC nRF52 series and Low Energy (BLE) Beacon standard 4.0 technology
- Supports standard iBeacon protocol, compatible with its SDK (iOS/Android)
- Designed for commercial advertising and indoor location-based service
- Broadcasts 2.4GHz radio signals at regular and adjustable intervals
- Can be heard and interpreted by iOS and Android BLE-enabled devices
Description
- Programmed standard iBeacon firmware
- Ultra-low power consumption chip set nRF52 series with ARM core
- Easy to print a customization Logo/branding on the case or the button
| Item | Aspect | Comments |
| Case Color | White | Other colors can be customized |
| Main material | ABS | Plastic housing |
| Battery Model | CR2016 | Coin battery, 1pc, 90mAh, replaceable |
| Protocol | iBeacon | UUID, Major, Minor |
| Advertising interval | 100m- 10000ms | -30dBm, -20dBm, -16dBm, -12dBm, -8dBm, -4dBm, odBm, 4dBm |
| Transmission Range | up to 50m(+4dBm) | Depending on the environment |
| Advertising Configurations | Password, Serial ID, | iBeacon Name, Connection mode |
| Size | Φ26x5mm | |
| Net Weight | 5.0g | With battery |
| Operating Temperature | -25 to +60ºC | |
| Storage Temperature | 20 to +30ºC | |
| Certifications | FCC/CE | |
| Antenna | PCB |
