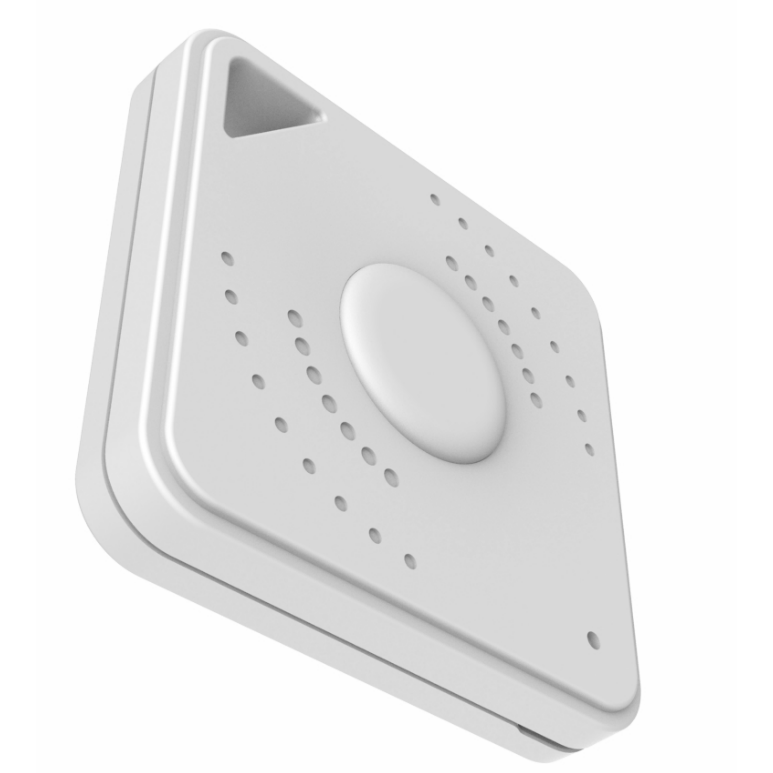

Trax10119-Key Fob
- The Trax10119-KeyFob is a portable iBeacon tag with ultra low power ARM chipset NORDIC nRF52 series and BLE 4.0 technology
- Portable case shape, waterproof structure, accurate hardware, robust firmware and external push button
- Designed for commercial advertising and indoor location-based service
- Broadcasts 2.4GHz radio signals at regular and adjustable intervals
- Can be heard and interpreted by iOS and Android BLE-enabled devices
Description
- Programmed standard iBeacon firmware
- Portable with external ON/OFF push button
- Ultra-low power consumption chipset nRF52 series with ARM® core
- Easy to print a customization Logo/branding on the case or the button
| Item | Aspect | Comments |
| Case Color | White | Other colors can be customized |
| Main material | ABS | |
| Battery Model | CR2032 | Coin battery, 1pc, 230mAh |
| Operation Voltage | 1.8-3.6V | DC |
| Waterproof level | IP66 | |
| Average Current | 19.4uA | Tested at -4dBm transmission power and 1000ms Advertising Interval. |
| Transmission Range | Up to 90m(+4dBm) | Depending on the environment where the Trax10119-KeyFob is placed these values might differ |
| Antenna | 50ohm | On board/Ceramic Antenna |
| Size | 32.5 x 32.5 x 6.22mm | |
| Net Weight | 7.8g | With battery |
| Operating Temperature | -25 to +60ºC | |
| Storage Temperature | 20 to +30ºC |
